UGREEN HD103 10173 Right-Angle HDMI Cable 2M – 10.2Gbps, 4K UHD, 3D, ARC, Ethernet & 24K Gold-Plated Connectors – Black

Description

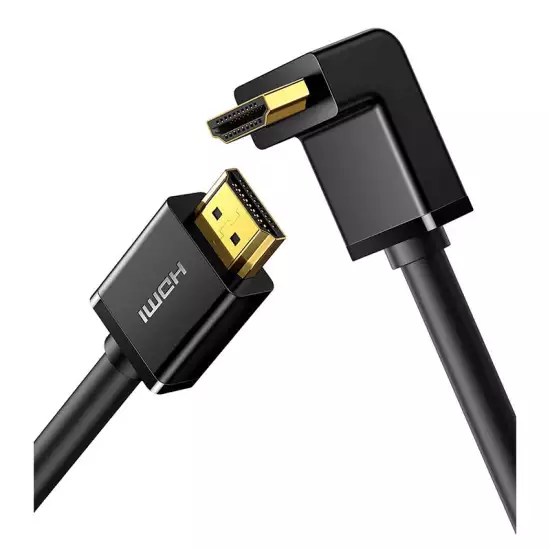

The UGREEN HD103 10173 is a 2-meter HDMI male-to-male cable featuring one fixed 90-degree right-angle connector. It is designed for wall-mounted televisions, monitors, projectors and other installations where the space behind the HDMI port is limited.

The angled connector allows the cable to run close to the device instead of extending directly outward, helping reduce cable strain and providing a cleaner installation.

It supports 4K UHD video, Full HD 1080p, 3D content, Audio Return Channel, HDMI Ethernet Channel and synchronized digital audio and video transmission.

Key Features

• HDMI male-to-male cable
• One straight HDMI connector
• One fixed 90-degree HDMI connector
• Up to 10.2Gbps bandwidth
• Supports 4K × 2K UHD resolution
• Supports Full HD 1080p
• Supports 3D video
• Audio Return Channel support
• HDMI Ethernet Channel support
• HDCP-compatible
• Deep Color support
• Digital audio and video synchronization
• Mirror and extended-display modes
• 24K gold-plated connectors
• Oxygen-free copper conductors
• Triple-layer shielding
• Durable PVC cable jacket
• Passive, electrically bidirectional HDMI cable
• Length: 2M / approximately 6.6ft
• Color: Black
• Model/SKU: 10173
• Product series: HD103
• EAN: 6957303811731

4K UHD Video

The UGREEN HD103 supports video resolutions up to 4K × 2K with compatible source devices and displays.

*Maximum resolution and refresh rate depend on the source, display and product revision. Exact-model listings consistently confirm 4K × 2K support; some regional listings specify 4K@30Hz, while newer listings advertise 4K@60Hz. Check the retail packaging if a particular 4K refresh rate is required.

10.2Gbps HDMI Bandwidth

The exact UGREEN 10173 specification lists transmission bandwidth up to 10.2Gbps.

This provides the capacity required for:

• 4K UHD video at supported refresh rates
• Full HD movies
• 3D content
• Digital multichannel audio
• Gaming at compatible display modes
• Presentations
• Streaming devices
• Home-entertainment systems

Space-Saving 90-Degree Connector

One HDMI connector has a fixed 90-degree downward-angle design, making the cable especially useful where a straight plug would press against a wall, cabinet or mounting bracket.

It is suitable for:

• Wall-mounted televisions
• Monitors positioned close to a wall
• Recessed HDMI connections
• Equipment cabinets
• Tight entertainment centers
• Desktop setups with limited rear clearance

The angled connector does not rotate. Check the HDMI port’s orientation before purchase because 90-degree and 270-degree connectors point in opposite directions.

Audio Return Channel

ARC allows a compatible television to return audio to an ARC-enabled soundbar or AV receiver through the HDMI connection.

This can reduce the need for a separate optical or analog audio cable.

ARC requires:

• An ARC-compatible television
• An ARC-compatible soundbar or receiver
• Connection through the designated ARC ports
• ARC enabled in the device settings

This model supports ARC, not the newer eARC standard.

HDMI Ethernet Channel

HDMI Ethernet Channel allows compatible HDMI devices to share a network connection through the HDMI cable.

Both connected devices must support HEC for this feature to operate. The cable cannot add Ethernet functionality to devices that do not support it.

3D Video Support

The cable supports 3D video transmission when used with compatible:

• 3D televisions
• 3D Blu-ray players
• Computers and graphics cards
• 3D projectors
• Compatible 3D content

Synchronized Digital Audio and Video

The UGREEN 10173 carries high-definition video and digital audio through a single cable.

It is suitable for:

• Movies and television
• Gaming
• Streaming
• Presentations
• Home-theater systems
• Digital signage

Available audio formats depend on the source, content, display and connected audio equipment.

Premium Shielded Construction

The cable uses oxygen-free copper conductors and triple-layer shielding to help protect the signal from electromagnetic and radio-frequency interference.

Its construction includes:

• Oxygen-free copper conductors
• Ground-wire protection
• Aluminium-foil shielding
• Braided shielding
• Durable PVC exterior
• 24K gold-plated connector contacts

The gold-plated contacts provide corrosion resistance and stable electrical contact.

Mirror and Extended-Display Modes

When connected between a computer and an HDMI display, the available display modes are controlled by the computer and operating system.

Mirror Mode

Duplicates the computer screen on a television, monitor or projector. This is useful for presentations, meetings, classrooms and movie playback.

Extended Mode

Uses the HDMI display as additional desktop space. This is useful for productivity, multitasking and working with multiple applications.

Wide Compatibility

Suitable for HDMI-equipped:

• Desktop computers
• Laptops
• Graphics cards
• Gaming consoles
• Blu-ray players
• DVD players
• Streaming devices
• TV boxes
• Set-top boxes
• Apple TV
• Compatible Roku devices
• PlayStation consoles
• Xbox consoles
• Nintendo Switch dock
• HDTVs
• 4K televisions
• Monitors
• Projectors
• AV receivers
• Soundbars

Performance is limited to the HDMI capabilities of the connected devices.

Specifications

Installation Guidance

1. Inspect the HDMI port’s orientation.
2. Compare the port with the fixed 90-degree connector.
3. Confirm that the angled plug will point toward open space.
4. Make sure it will not block another port, ventilation opening or mounting bracket.
5. Connect the angled end where clearance is limited.
6. Connect the straight end to the other HDMI device.
7. Select the corresponding HDMI input on the television, monitor or projector.
8. Configure the required resolution and audio output on the source device.

Leave a relaxed bend in the cable and avoid using the angled connector as a lever against the HDMI port.

Important Compatibility Notes

• The 90-degree connector has a fixed direction and does not rotate.
• A 270-degree HDMI connector points in the opposite direction.
• Check the physical port orientation before purchasing.
• The angled connector may not fit some deeply recessed HDMI ports.
• It may block an adjacent port if the connectors are positioned close together.
• This is an HDMI-to-HDMI cable and does not convert HDMI to USB-C, DisplayPort, DVI or VGA.
• It does not split one HDMI source across multiple independent displays.
• It cannot upgrade the HDMI capabilities of a source or display.
• ARC, HEC, 3D and HDCP require compatible equipment.
• This is not an HDMI 2.1 Ultra High Speed cable for 8K@60Hz or 4K@120Hz.

Best For

• Wall-mounted televisions
• Tight HDMI installations
• Monitors close to a wall
• Home-theater systems
• Streaming devices
• Blu-ray and DVD players
• TV boxes
• Gaming consoles
• Desktop computers and laptops
• Projectors
• Soundbars and AV receivers
• Conference rooms and classrooms

Why Choose the UGREEN HD103 10173?

• Space-saving fixed 90-degree HDMI connector.
• Ideal for wall-mounted televisions and tight spaces.
• Supports resolutions up to 4K × 2K.
• Supports Full HD and 3D video.
• Carries digital audio and video through one cable.
• Supports ARC and HDMI Ethernet Channel.
• Uses oxygen-free copper conductors.
• Triple-layer shielding helps reduce interference.
• 24K gold-plated contacts resist corrosion.
• Durable PVC construction.
• Convenient 2-meter cable length.
• Compatible with a wide range of HDMI source and display devices.
