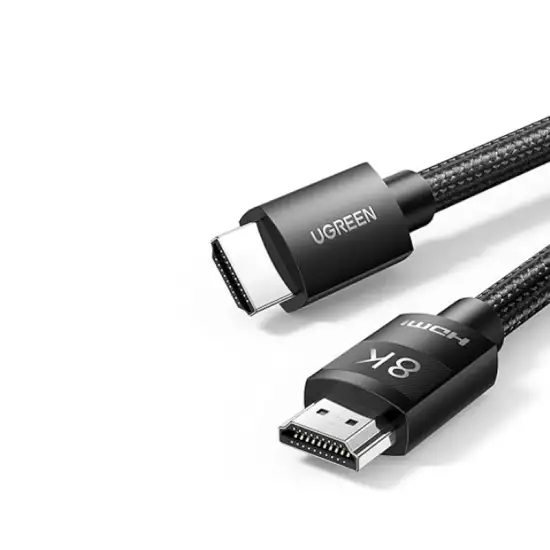

UGREEN HD140 80401B HDMI 2.1 Cable 1M – 48Gbps, 8K@60Hz, 4K@120Hz, Dynamic HDR, Dolby Vision, eARC, VRR & ALLM – Black

Description

The UGREEN HD140 80401B is a high-performance 1-meter HDMI 2.1 male-to-male cable designed for 8K entertainment, 4K high-refresh gaming and advanced home-theater systems.

It provides bandwidth up to 48Gbps and supports resolutions up to 8K at 60Hz and 4K at 120Hz. It also supports advanced HDMI features including Dynamic HDR, HDR10+, Dolby Vision, eARC, VRR, ALLM, QMS and QFT.

The cable combines oxygen-free copper conductors, multiple shielding layers, zinc-alloy connector housings and a durable nylon-braided exterior.

The “B” suffix appears to be a regional inventory or packaging identifier; available exact-product documentation maps it to the base UGREEN 80401/HD140 specification.

Key Features

• HDMI 2.1 male-to-male cable
• Ultra High Speed HDMI performance
• Bandwidth up to 48Gbps
• Supports 8K at 60Hz
• Supports 8K at 50Hz
• Supports 4K at 120Hz
• Supports 4K at 100Hz
• Supports 4K at 60Hz
• Dynamic HDR support
• HDR10+ support
• Dolby Vision support
• eARC support
• ARC support
• Dolby Atmos support
• Dolby TrueHD support
• VRR support
• ALLM support
• QMS support
• QFT support
• HDMI Ethernet Channel
• HDCP support
• CEC support
• 3D video support
• Mirror and extended-display modes
• Oxygen-free copper conductors
• Multiple shielding layers
• Zinc-alloy connector housings
• Nylon-braided exterior
• Passive, electrically bidirectional cable
• Length: 1M / approximately 3.3ft
• Color: Black
• Model/SKU: 80401B
• Base SKU: 80401
• Product series: HD140
• EAN: 6957303884018

8K@60Hz and 4K@120Hz

The UGREEN 80401B provides the bandwidth required for UHD video and high-refresh-rate gaming.

*The available resolution, refresh rate, color depth and HDR format depend on the source, HDMI ports, display and content. Some recently updated regional pages advertise 4K@240Hz for base model 80401, but 4K@120Hz is the consistently documented maximum for the original HD140 revision.

48Gbps HDMI 2.1 Bandwidth

HDMI 2.1 bandwidth up to 48Gbps provides the capacity required for demanding display and audio formats.

This makes the cable suitable for:

• 8K@60Hz video
• 4K@120Hz gaming
• PlayStation 5
• Xbox Series X|S
• Gaming PCs
• NVIDIA GeForce RTX graphics cards
• AMD Radeon graphics cards
• 8K and 4K televisions
• OLED and QLED gaming TVs
• High-refresh-rate gaming monitors
• Home-theater equipment

4K@120Hz Gaming

Support for 4K at up to 120Hz makes the UGREEN 80401B suitable for compatible modern gaming platforms.

Compatible equipment can include:

• PlayStation 5/PS5 Pro
• Xbox Series X|S
• Gaming PCs
• 4K 120Hz gaming monitors
• OLED gaming televisions
• QLED gaming televisions
• Compatible NVIDIA and AMD graphics cards

Both the gaming system and display must support 4K@120Hz through their selected HDMI ports.

VRR and ALLM

Variable Refresh Rate

VRR allows compatible sources and displays to synchronize refresh behavior dynamically, helping reduce:

• Screen tearing
• Stuttering
• Uneven frame presentation
• Motion disruption

Auto Low Latency Mode

ALLM allows compatible televisions and monitors to switch automatically to a low-latency display mode when gaming content is detected.

VRR and ALLM must be supported and enabled on the source and display.

QMS and QFT

Quick Media Switching

QMS helps compatible equipment switch between different video frame rates with reduced blank-screen interruption.

Quick Frame Transport

QFT reduces the time required to transport individual frames between compatible equipment, potentially improving gaming responsiveness.

Dynamic HDR, HDR10+ and Dolby Vision

The cable supports advanced HDR signal transmission, including Dynamic HDR, HDR10+ and Dolby Vision.

These formats can provide improved:

• Contrast
• Brightness
• Color reproduction
• Highlight detail
• Shadow detail
• Image depth

The source, content and display must all support the selected HDR format.

eARC Audio Support

eARC provides increased audio bandwidth compared with standard ARC and supports advanced audio formats between compatible televisions, soundbars and AV receivers.

Supported formats can include:

• Dolby Atmos
• Dolby TrueHD
• Multichannel PCM
• High-resolution surround sound
• Other object-based audio formats supported by the equipment

eARC must be supported and enabled across the connected television and audio equipment.

HDMI Ethernet Channel and CEC

HDMI Ethernet Channel

Allows compatible HDMI equipment to share a network connection without requiring a separate Ethernet cable between those devices.

Consumer Electronics Control

CEC allows supported devices to control certain functions of other HDMI-connected equipment, including power, volume and input selection.

These functions depend on the capabilities and settings of the connected devices.

Premium Shielded Construction

The UGREEN HD140 is designed for stable signal transmission and improved physical durability.

Its construction includes:

• Oxygen-free copper conductors
• Multiple internal shielding layers
• Aluminium-foil shielding
• Braided signal shielding
• Ground-wire protection
• Zinc-alloy connector housings
• Nylon-braided exterior
• Reinforced strain relief

The 1-meter length is convenient for gaming desks, nearby consoles, AV receivers and wall-mounted equipment where excess cable is unnecessary.

Mirror and Extended-Display Modes

When connected between a computer and external display, the cable supports the display modes provided by the graphics hardware and operating system.

Mirror Mode

Duplicates the computer screen on a television, monitor or projector.

Extended Mode

Uses the HDMI display as additional desktop space for productivity and multitasking.

Wide Compatibility

Suitable for HDMI-equipped:

• MacBook Pro models with an HDMI port
• Desktop computers
• Gaming PCs
• NVIDIA graphics cards
• AMD graphics cards
• PlayStation 5/PS5 Pro
• PlayStation 4/PS4 Pro
• PlayStation 3
• Xbox Series X|S
• Xbox One
• Xbox 360
• Nintendo Switch dock
• Wii U
• Apple TV
• Roku
• Fire TV
• Blu-ray players
• DVD players
• Streaming devices
• TV boxes
• Set-top boxes
• 8K UHD televisions
• 4K 120Hz televisions
• OLED and QLED televisions
• Gaming monitors
• Projectors
• Soundbars
• AV receivers
• Home-theater systems

MacBook models without a built-in HDMI port require a suitable USB-C or Thunderbolt video adapter.

Specifications

Backward Compatibility

The UGREEN 80401B is backward compatible with earlier HDMI standards, including:

• HDMI 2.0b
• HDMI 2.0a
• HDMI 2.0
• HDMI 1.4
• HDMI 1.3
• HDMI 1.2
• HDMI 1.1

When connected to older HDMI equipment, performance is limited to the capabilities of the lowest-specification device.

Installation Guidance

1. Confirm that both devices use standard HDMI Type-A ports.
2. Identify the HDMI ports supporting the required display mode.
3. Connect one end to the HDMI source.
4. Connect the other end to the display or AV equipment.
5. Select the corresponding HDMI input.
6. Enable Enhanced HDMI, Deep Color or Input Signal Plus if required.
7. Select the desired resolution and refresh rate.
8. Enable HDR, VRR, ALLM or eARC in the connected equipment where required.

If the required mode does not appear, test with a standard format such as 1080p or 4K@60Hz before enabling higher-bandwidth features.

Important Compatibility Notes

To achieve 8K@60Hz or 4K@120Hz, the entire connection must support the selected mode:

Compatible source → UGREEN 80401B → Compatible display

Performance may be limited by:

• Source-device HDMI version
• Graphics processor
• Display HDMI input
• AV receiver or soundbar
• HDMI switch or splitter
• Wall plate or coupler
• Console settings
• Operating-system settings
• HDCP requirements
• HDR and color-depth configuration

The cable cannot add HDMI 2.1 capabilities to HDMI 2.0 equipment or make a 4K@60Hz display operate at 4K@120Hz.

Best For

• 8K@60Hz UHD video
• 4K@120Hz gaming
• PlayStation 5/PS5 Pro
• Xbox Series X|S
• Gaming PCs
• OLED and QLED gaming televisions
• High-refresh gaming monitors
• Apple TV and Roku
• MacBook Pro models with HDMI
• Blu-ray players
• Projectors
• Soundbars
• AV receivers
• Dolby Atmos home-theater systems
• Short, organized equipment connections

Why Choose the UGREEN HD140 80401B?

• HDMI 2.1 performance with bandwidth up to 48Gbps.
• Supports resolutions up to 8K@60Hz.
• Supports 4K@120Hz high-refresh gaming.
• Supports Dynamic HDR, HDR10+ and Dolby Vision.
• Supports VRR and ALLM for compatible gaming systems.
• Supports QMS and QFT.
• eARC support for advanced home-theater audio.
• Oxygen-free copper conductors.
• Multiple shielding layers help protect signal integrity.
• Durable zinc-alloy connector housings.
• Flexible nylon-braided construction.
• Convenient 1-meter length.
• Compatible with consoles, gaming PCs, UHD displays and home-theater equipment.
