UGREEN Bi-Directional HDMI Switch – 4K@60Hz, 2-In-1-Out / 1-In-2-Out

Description

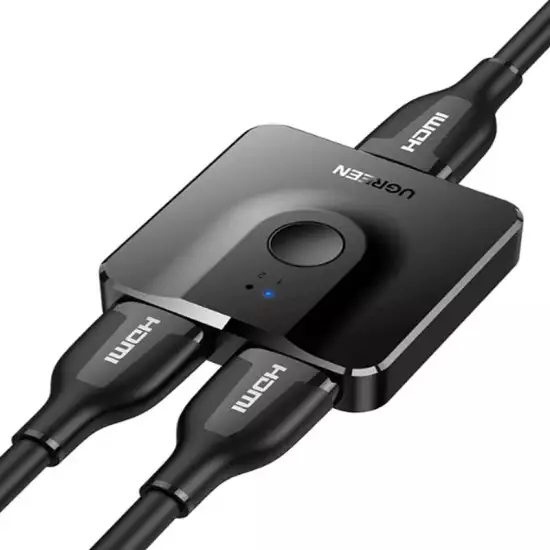

The UGREEN Bi-Directional HDMI Switch is a compact HDMI selector that can operate in two directions, allowing either two HDMI source devices to share one display or one HDMI source to connect to one of two displays.

Supporting up to 4K UHD at 60Hz, along with HDR and 3D video, it is suitable for gaming consoles, PCs, streaming devices, TVs, monitors, and projectors. Its physical switch button provides quick switching without repeatedly disconnecting HDMI cables.

Key Features

• Bi-Directional HDMI Switch
• 2-In 1-Out Mode
• 1-In 2-Out Mode
• Supports up to 4K @ 60Hz
• Supports 1080p Full HD
• HDR supporta
• 3D video support
• Manual one-button switching
• LED status indicators
• Digital video & audio transmission
• Plug-and-play
• No driver installation required
• Compatible with PS5 / PS4
• Compatible with Xbox
• Compatible with Roku
• Compatible with Apple TV
• Compatible with Fire TV Stick
• Suitable for TVs, monitors & projectors

Bi-Directional Design

The main advantage of this UGREEN HDMI switch is its bi-directional operation.

Mode 1 – 2 Inputs → 1 Output

Connect two HDMI source devices to one display.

Example:

PS5 + Xbox → UGREEN HDMI Switch → TV

Press the button to choose which console appears on the TV.

Mode 2 – 1 Input → 2 Outputs

Connect one HDMI source to two displays.

Example:

Gaming PC → UGREEN HDMI Switch → TV OR Monitor

Press the button to choose which display receives the signal.

Important: It Does Not Display on Two Screens Simultaneously

Although the product is sometimes described as a 1-in-2-out HDMI splitter, it is actually a switch.

In 1-input / 2-output mode:

• Display 1: Selectable
• Display 2: Selectable
• Both simultaneously: No

It sends the signal to one selected display at a time.

If you need the same image displayed on two TVs simultaneously, you need a true powered HDMI splitter.

4K Ultra HD at 60Hz

The switch supports high-resolution HDMI video up to:

• 4K @ 60Hz: Yes
• 4K @ 30Hz: Yes
• 1080p @ 60Hz: Yes
• 720p: Yes
• 3D Video: Yes

This makes it suitable for modern 4K TVs and monitors.

Actual output depends on the source, HDMI cables, switch, and display capabilities.

HDR Support

Compatible HDR signals can pass through the switch, allowing supported TVs and monitors to deliver enhanced:

• Contrast
• Brightness
• Color reproduction
• Highlight detail
• Shadow detail

The source device, content, cables, and display must also support the required HDR format.

One-Button Switching

A physical button allows quick switching between connected devices.

For example, in 2-in-1-out mode:

• HDMI 1: PS5
• HDMI 2: Xbox
• Display: TV

Simply press the button to change between the PS5 and Xbox.

LED Indicators

Built-in LED indicators show which HDMI connection is currently active.

This is particularly useful when several devices remain permanently connected.

Gaming Console Compatibility

The switch is suitable for HDMI-equipped gaming consoles including:

• PlayStation 5
• PlayStation 4 / PS4 Pro
• Xbox Series X|S
• Xbox One
• Nintendo Switch via dock

Important for PS5 & Xbox Series X

This model is designed for up to 4K@60Hz.

For next-generation gaming features such as 4K@120Hz, use an appropriate HDMI 2.1 switch with 4K@120Hz support.

Streaming Device Compatibility

It can also be used with compatible media and streaming devices such as:

• Roku
• Apple TV
• Amazon Fire TV / Fire Stick
• Blu-ray players
• TV boxes
• Media players
• PCs & laptops

Digital Audio & Video

HDMI transmits compatible digital video and audio through the same connection.

The switch can therefore be used with compatible:

• TVs
• Monitors with speakers
• Projectors
• AV equipment
• Home entertainment systems

Specifications

• Brand: UGREEN
• Product Type: Bi-Directional HDMI Switch
• Operating Mode 1: 2 Inputs → 1 Output
• Operating Mode 2: 1 Input → 2 Outputs
• Maximum Active Connection: 1 at a time
• Maximum Resolution: 4K UHD
• 4K @ 60Hz: Yes
• 1080p: Yes
• HDR: Supported
• 3D Video: Supported
• Digital Video: Yes
• Digital Audio: Yes
• Bi-Directional: Yes
• Manual Switching: Yes
• LED Indicators: Yes
• Simultaneous Dual Display: No
• PS5 / PS4 Compatible: Yes
• Xbox Compatible: Yes
• Nintendo Switch Compatible: Yes
• Roku Compatible: Yes
• Apple TV Compatible: Yes
• Fire TV Compatible: Yes
• PC / Laptop Compatible: Yes
• TV / Monitor / Projector Compatible: Yes

2-In-1-Out vs 1-In-2-Out

Important Compatibility Note

To achieve 4K@60Hz, every component in the HDMI connection needs to support the required resolution and refresh rate.

For example:

4K@60Hz Source → HDMI Cable → UGREEN Switch → HDMI Cable → 4K@60Hz TV

A lower-specification HDMI cable or display can limit the final output.

Also:

• 4K@60Hz:
• 1080p@60Hz:
• HDR: Compatible signals
• 3D:
• 4K@120Hz:
• 8K@60Hz:
• Two displays simultaneously:

Best For

• PS5 / PS4
• Xbox Series X|S
• Nintendo Switch
• Gaming PCs
• 4K TVs
• 4K Monitors
• Projectors
• Apple TV
• Roku
• Fire TV Stick
• Blu-ray Players
• Two Consoles Sharing One TV
• One PC Switching Between TV & Monitor

Why Choose the UGREEN Bi-Directional HDMI Switch?

• Works in both 2-in-1-out and 1-in-2-out configurations.
• Supports up to 4K@60Hz on compatible equipment.
• Allows two gaming consoles or media devices to conveniently share one HDMI display.
• Can alternatively switch one HDMI source between two displays.
• Supports compatible HDR and 3D video.
• One-button switching eliminates frequent HDMI cable swapping.
• Compact plug-and-play design is convenient for gaming and entertainment setups.
• The combination of bi-directional operation, 4K@60Hz support, HDR, and simple manual switching makes it a practical HDMI connectivity solution for TVs, monitors, consoles, and media devices.
