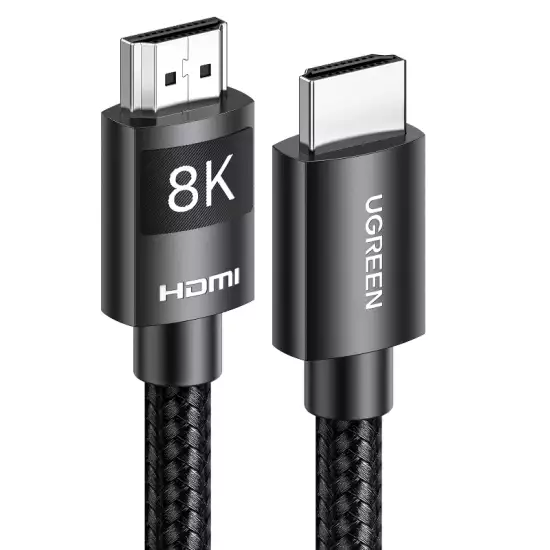

UGREEN HD150 40178 HDMI 2.1 Cable 1M – 48Gbps, 8K@60Hz, 4K@120Hz, Dynamic HDR, Dolby Vision, eARC, VRR & ALLM – Black

Description

The UGREEN HD150 40178 is a high-performance 1-meter HDMI 2.1 male-to-male cable designed for 8K entertainment, high-refresh-rate gaming and advanced home-theater systems.

It provides bandwidth up to 48Gbps and supports resolutions up to 8K at 60Hz and 4K at 120Hz. Advanced HDMI technologies include Dynamic HDR, Dolby Vision, eARC, VRR, ALLM, QMS and QFT.

The cable is suitable for compatible gaming consoles, computers, graphics cards, UHD televisions, monitors, projectors, Blu-ray players, soundbars and AV receivers.

Key Features

• HDMI 2.1 male-to-male cable
• Ultra High Speed HDMI performance
• Bandwidth up to 48Gbps
• Supports 8K at 60Hz
• Supports 8K at 50Hz
• Supports 4K at 120Hz
• Supports 4K at 100Hz
• Supports 2K/1440p at 144Hz
• Supports 1080p at 240Hz
• Dynamic HDR support
• Static HDR support
• HDR10+ support
• Dolby Vision support
• SBTM support
• eARC support
• ARC support
• Dolby Atmos support
• Dolby TrueHD support
• DTS-HD Master Audio support
• DTS:X support
• VRR support
• ALLM support
• QMS support
• QFT support
• HDCP 2.2 and 2.3 support
• HDMI Ethernet Channel
• CEC support
• 3D video support
• 12-bit color depth support
• Nylon-braided exterior
• Passive, electrically bidirectional cable
• Length: 1M / approximately 3.3ft
• Color: Black
• Model/SKU: 40178
• Product series: HD150
• EAN: 6957303841783

8K@60Hz and 4K@120Hz

The UGREEN 40178 provides the bandwidth required for high-resolution video and high-refresh-rate gaming.

*Actual resolution, refresh rate, HDR format and color depth depend on the source, HDMI ports, display and content. Some recently updated regional listings additionally advertise 4K@240Hz for SKU 40178, but 4K@120Hz is the consistently documented mode for the original HD150 version.

48Gbps HDMI 2.1 Bandwidth

HDMI 2.1 bandwidth up to 48Gbps provides the capacity required for 8K video, 4K high-refresh gaming and advanced digital audio.

This makes the cable suitable for:

• 8K UHD video
• 4K@120Hz gaming
• PlayStation 5
• Xbox Series X|S
• Gaming PCs
• NVIDIA GeForce RTX graphics cards
• AMD Radeon graphics cards
• 8K and 4K televisions
• OLED and QLED gaming TVs
• High-refresh-rate monitors
• Home-theater equipment

4K@120Hz Gaming

Support for 4K at up to 120Hz makes the UGREEN 40178 suitable for modern gaming systems.

Compatible equipment can include:

• PlayStation 5/PS5 Pro
• Xbox Series X|S
• Gaming PCs
• NVIDIA GeForce RTX GPUs
• AMD Radeon GPUs
• 4K 120Hz gaming monitors
• OLED gaming televisions
• QLED gaming televisions

The console or computer and display must both support 4K@120Hz through their selected HDMI ports.

VRR and ALLM

The cable supports HDMI gaming technologies including VRR and ALLM.

Variable Refresh Rate

VRR allows compatible gaming systems and displays to synchronize refresh behavior dynamically, helping reduce:

• Screen tearing
• Stuttering
• Uneven motion
• Input disruption

Auto Low Latency Mode

ALLM allows compatible displays to switch automatically to a lower-latency mode when gaming content is detected.

These features must be supported and enabled on both the source and display.

QMS and QFT

Quick Media Switching

QMS helps compatible equipment switch between video modes with reduced blank-screen interruption.

Quick Frame Transport

QFT can reduce transport latency between a compatible source and display, helping improve responsiveness during gaming.

Dynamic HDR, HDR10+ and Dolby Vision

The UGREEN 40178 supports the transmission of advanced HDR formats, including Dynamic HDR, HDR10+ and Dolby Vision.

These formats can provide enhanced:

• Brightness
• Contrast
• Color reproduction
• Highlight detail
• Shadow detail
• Image depth

The source, content and display must all support the selected HDR format.

SBTM Support

Source-Based Tone Mapping allows compatible source devices to perform part of the HDR tone-mapping process before sending the image to the display.

This may improve HDR presentation when both the source and display support the feature.

eARC Audio Support

eARC provides greater audio bandwidth than standard ARC and supports advanced home-theater audio formats with compatible televisions, soundbars and AV receivers.

Advertised audio support includes:

• Dolby Atmos
• Dolby TrueHD
• DTS-HD Master Audio
• DTS:X
• 5.1-channel audio
• 7.1-channel audio
• Uncompressed multichannel audio

eARC must be supported and enabled on the connected television and audio equipment.

HDMI Ethernet and CEC

The cable supports HDMI Ethernet Channel and Consumer Electronics Control.

HDMI Ethernet Channel

Allows compatible HDMI devices to share a network connection without a separate Ethernet cable between them.

CEC

Allows compatible HDMI-connected equipment to control certain functions of other devices, such as power, volume and input selection.

Feature availability depends on the connected equipment.

Durable Braided Construction

The cable features a flexible braided exterior designed to improve resistance to bending, abrasion and everyday wear.

Its construction includes:

• Braided outer jacket
• Protective PVC layer
• Copper conductors
• Multiple internal shielding layers
• Reinforced connector strain relief
• Corrosion-resistant HDMI contacts

The short 1-meter length is particularly convenient for nearby equipment and helps minimize excess cable behind a television or gaming desk.

Wide Compatibility

Suitable for HDMI-equipped:

• MacBook Pro models with HDMI
• Desktop PCs
• Gaming PCs
• NVIDIA and AMD graphics cards
• PlayStation 5/PS5 Pro
• PlayStation 4/PS4 Pro
• PlayStation 3
• Xbox Series X|S
• Xbox One
• Xbox 360
• Nintendo Switch dock
• Apple TV 4K
• Roku
• NVIDIA Shield TV
• Fire TV
• Raspberry Pi models with full-size HDMI
• Blu-ray players
• DVD players
• Streaming devices
• Set-top boxes
• 8K UHD televisions
• 4K 120Hz televisions
• OLED and QLED TVs
• Gaming monitors
• Projectors
• Soundbars
• AV receivers
• Home-theater systems

MacBook models without a built-in HDMI port require an appropriate USB-C or Thunderbolt adapter.

Specifications

Backward Compatibility

The UGREEN 40178 is backward compatible with earlier HDMI standards, including:

• HDMI 2.0b
• HDMI 2.0a
• HDMI 2.0
• HDMI 1.4
• HDMI 1.3
• HDMI 1.2
• HDMI 1.1

When connected to older HDMI equipment, performance is limited to the capabilities of the lowest-specification component.

Installation Guidance

1. Confirm that both devices have full-size HDMI Type-A ports.
2. Identify the HDMI ports supporting the required mode.
3. Connect one end to the source device.
4. Connect the other end to the display or AV equipment.
5. Select the corresponding HDMI input.
6. Enable Enhanced HDMI, Deep Color or Input Signal Plus if required by the display.
7. Select the required resolution and refresh rate.
8. Enable VRR, ALLM, HDR or eARC in the connected devices where required.

For troubleshooting, begin with a standard resolution such as 1080p or 4K@60Hz before enabling higher-bandwidth modes.

Important Compatibility Notes

To achieve 8K@60Hz or 4K@120Hz, the complete connection must support the selected mode:

Compatible source → UGREEN 40178 → Compatible display

Performance may be limited by:

• Source-device HDMI version
• Graphics processor
• Display HDMI input
• AV receiver or soundbar
• HDMI switch or splitter
• Wall plate or coupler
• Operating-system settings
• Console video settings
• HDR and color-depth configuration
• HDCP requirements

The cable cannot upgrade an HDMI 2.0 device to HDMI 2.1 or make a 4K@60Hz display operate at 4K@120Hz.

Best For

• 8K@60Hz UHD video
• 4K@120Hz gaming
• PlayStation 5/PS5 Pro
• Xbox Series X|S
• Gaming PCs
• OLED and QLED gaming TVs
• High-refresh gaming monitors
• MacBook Pro models with HDMI
• Apple TV and Roku
• Blu-ray players
• Streaming devices
• Soundbars and AV receivers
• Dolby Atmos home-theater systems
• Short, clean equipment connections

Why Choose the UGREEN HD150 40178?

• HDMI 2.1 performance with up to 48Gbps bandwidth.
• Supports resolutions up to 8K@60Hz.
• Supports 4K@120Hz high-refresh-rate gaming.
• Supports Dynamic HDR, HDR10+ and Dolby Vision.
• Supports VRR and ALLM for compatible gaming systems.
• Supports QMS and QFT.
• eARC support for advanced home-theater audio.
• Supports Dolby Atmos, Dolby TrueHD and DTS:X.
• Supports HDCP 2.2 and 2.3.
• Durable braided construction.
• Convenient 1-meter cable length.
• Compatible with gaming consoles, PCs, UHD displays and home-theater equipment.
