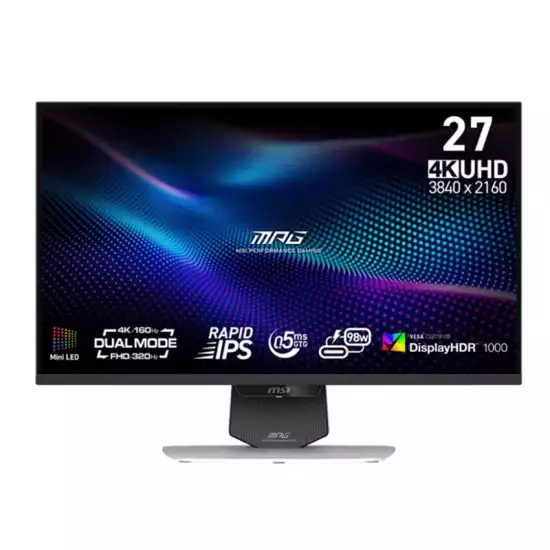

MSI MPG 274URDFW E16M Gaming Monitor – 27-Inch Mini-LED Dual Mode 4K 160Hz / FHD 320Hz, 0.5ms GTG – White (Open Sealed)

Description

The MSI MPG 274URDFW E16M is a premium 27-inch gaming monitor designed for users who want both high-resolution 4K gaming and ultra-high-refresh competitive gaming from the same display.

Its Dual Mode system allows the monitor to operate at:

3840 × 2160 4K UHD up to 160Hz

or:

1920 × 1080 Full HD up to 320Hz

This allows users to prioritize either maximum image detail or maximum refresh rate depending on the game.

The monitor uses a Rapid IPS Mini-LED panel with 1,152 full-array local dimming zones, providing strong HDR performance, high brightness, wide color coverage, and improved contrast compared with conventional edge-lit IPS gaming monitors. It is certified for VESA DisplayHDR 1000 and reaches up to 1000 nits HDR peak brightness.

Brand: MSI
Series: MPG
Model: MPG 274URDFW E16M
Product Type: Dual Mode Mini-LED Gaming Monitor
Screen Size: 27 Inches
Panel Type: Rapid IPS Mini-LED
Local Dimming Zones: 1,152
Panel Design: Flat
Normal Mode: 4K UHD 3840 × 2160 at 160Hz
Dual Mode: FHD 1920 × 1080 at 320Hz
Response Time: 0.5ms GTG Minimum
HDR: VESA DisplayHDR 1000
Adaptive Sync: G-SYNC Compatible / AMD FreeSync Premium
USB-C: DP Alt Mode + 98W Power Delivery
Color: White
Condition: Open Sealed

Key Features

• 27-Inch Gaming Monitor
• Rapid IPS Mini-LED
• 1,152 Local Dimming Zones
• Dual Mode Display
• 4K UHD 3840 × 2160 at 160Hz
• Full HD 1920 × 1080 at 320Hz
• 0.5ms GTG Minimum Response Time
• NVIDIA G-SYNC Compatible
• AMD FreeSync Premium
• Adaptive-Sync
• VESA DisplayHDR 1000
• Up to 1000 Nits HDR Peak Brightness
• 400 Nits SDR Brightness
• Quantum Dot Technology
• 100% Adobe RGB
• 98% DCI-P3
• 140% sRGB
• 1.07 Billion Colors
• 10-Bit Color via 8-Bit + FRC
• 2× HDMI 2.1
• 1× DisplayPort 1.4a
• 1× USB-C with DP Alt Mode
• USB-C 98W Power Delivery
• 2× USB 2.0 Type-A
• 1× USB 2.0 Type-B
• KVM Support
• PIP / PBP
• HDMI CEC
• Console VRR
• Full Ergonomic Stand
• VESA 100 × 100mm
• White
• Open Sealed

27-Inch Rapid IPS Mini-LED Panel

The MPG 274URDFW E16M uses:

Rapid IPS with Mini-LED

Screen Size

27 Inches

Panel Type

Rapid IPS Mini-LED

Panel Design

Flat

Local Dimming Zones

1,152

MSI uses full-array local dimming with 1,152 independent zones to improve dark-scene control and HDR contrast.

Dual Mode

The defining feature of this monitor is:

Dual Mode

Users can switch between two primary operating modes.

Normal Mode

3840 × 2160 UHD at up to 160Hz

Dual Mode

1920 × 1080 FHD at up to 320Hz

This makes the monitor suitable for both:

• High-resolution AAA gaming
• Competitive FPS gaming
• Esports
• High-refresh shooters
• Racing games
• Content creation
• 4K entertainment

4K UHD Mode

In normal mode, the monitor operates at:

3840 × 2160

with refresh rates up to:

160Hz

Resolution

4K UHD

Maximum 4K Refresh Rate

160Hz

This mode is intended for users who prioritize image detail and sharpness.

Full HD 320Hz Mode

When Dual Mode is enabled, the monitor operates at:

1920 × 1080

with refresh rates up to:

320Hz

Resolution

FHD

Maximum Refresh Rate

320Hz

This mode is especially useful for competitive shooters where maximum refresh rate is more important than native 4K resolution.

Important Refresh Rate Note

The monitor is not simply a:

320Hz 4K Monitor

The correct specification is:

4K 160Hz

or:

FHD 320Hz

depending on the selected mode.

This distinction should remain clear in the product title and description.

0.5ms GTG Response Time

MSI specifies:

0.5ms GTG Minimum

Response Time

0.5ms GTG Minimum

This is a gray-to-gray measurement and is particularly relevant for high-refresh competitive gaming.

Mini-LED with 1,152 Zones

The monitor features:

1,152 Full-Array Local Dimming Zones

Mini-LED local dimming allows different areas of the backlight to be controlled independently.

This can provide:

• Deeper blacks
• Better HDR contrast
• Higher peak brightness
• Improved highlight control
• Better dark-scene performance

compared with conventional IPS backlights.

VESA DisplayHDR 1000

The monitor is certified for:

VESA DisplayHDR 1000

HDR

Yes

HDR Certification

DisplayHDR 1000

HDR Peak Brightness

1000 Nits

SDR Brightness

400 Nits

Quantum Dot Technology

MSI also uses:

Quantum Dot Technology

to improve color reproduction and gamut coverage.

Adobe RGB

100%

DCI-P3

98%

sRGB

140%

Display Colors

1.07 Billion

Color Depth

10-Bit via 8-Bit + FRC

NVIDIA G-SYNC Compatible

The monitor supports:

NVIDIA G-SYNC Compatible

G-SYNC

Compatible

This provides variable-refresh support with compatible NVIDIA GPUs.

AMD FreeSync Premium

The monitor also supports:

AMD FreeSync Premium

FreeSync

Premium

MSI lists the VRR operating range as:

48–160Hz in UHD mode

and:

48–320Hz in FHD Dual Mode.

HDMI 2.1

The MPG 274URDFW E16M includes:

2× HDMI 2.1

HDMI Ports

2

Maximum UHD Refresh

3840 × 2160 up to 160Hz

Dual Mode

1920 × 1080 up to 320Hz

DisplayPort 1.4a

The monitor provides:

1× DisplayPort 1.4a HBR3

DisplayPort

1

Version

1.4a HBR3

It supports both:

4K 160Hz

and:

FHD 320Hz Dual Mode.

USB-C with 98W Power Delivery

The monitor includes:

USB Type-C

supporting:

• DisplayPort Alt Mode
• Video Input
• Data Connectivity
• Up to 98W Power Delivery

USB-C

Yes

DisplayPort Alt Mode

Yes

Power Delivery

Up to 98W

This makes it suitable for compatible laptops that can carry video, data, and charging through a single USB-C connection.

USB Hub

Rear connectivity includes:

2× USB 2.0 Type-A

and:

1× USB 2.0 Type-B upstream

KVM Support

The MPG 274URDFW E16M supports:

KVM

allowing compatible keyboard and mouse peripherals to be shared between connected systems.

KVM

Yes

PIP / PBP

The monitor supports:

Picture-in-Picture

and:

Picture-by-Picture

PIP

Yes

PBP

Yes

Console Mode

MSI lists console support for:

• 1080p at 60Hz / 120Hz
• 1440p at 60Hz / 120Hz
• 2160p at 60Hz / 120Hz

with:

• PS5 VRR
• Xbox VRR
• HDMI CEC

support.

PS5

Yes

Xbox Series X|S

Yes

4K 120Hz Console Support

Yes

VRR

Yes

Important Console Note

The monitor's maximum PC refresh rates of:

4K 160Hz

and:

FHD 320Hz

do not mean current consoles output those same maximum refresh rates.

MSI lists console modes up to:

4K 120Hz

for compatible PS5 and Xbox configurations.

Headphone Output

The monitor includes:

1× Headphone Output

Headphone Jack

Yes

Built-In Speakers

Not Listed

MSI's specification lists headphone output but does not list integrated speakers.

Ergonomic Stand

The included stand supports:

Height Adjustment

0–110mm

Tilt

-5° to +20°

Swivel

-30° to +30°

Pivot

-90° to +90°

This provides much greater ergonomic flexibility than tilt-only stands.

VESA Mount

The monitor supports:

100 × 100mm VESA

VESA

100 × 100mm

Dimensions and Weight

With Stand

613.1 × 202.38 × 400.85mm

Without Stand

613.1 × 68.77 × 375.31mm

Net Weight

Approx. 8.2kg

Gross Weight

Approx. 12.4kg

Specifications

These specifications are confirmed by MSI's current official product specification and datasheet.

Quick Product Fields

• Screen Size: 27 Inches
• Resolution: 4K / FHD Dual Mode
• Native Resolution: 3840 × 2160
• Dual Mode Resolution: 1920 × 1080
• Refresh Rate: 160Hz / 320Hz Dual Mode
• Panel Type: IPS / Rapid IPS Mini-LED
• Panel Design: Flat
• Response Time: 0.5ms
• Local Dimming: 1,152 Zones
• G-SYNC Compatible: Yes
• AMD FreeSync Premium: Yes
• HDR: VESA DisplayHDR 1000
• HDR Peak: 1000 Nits
• HDMI: 2× HDMI 2.1
• DisplayPort: 1× DP 1.4a
• USB-C: Yes
• USB-C PD: 98W
• KVM: Yes
• PIP/PBP: Yes
• VESA: 100 × 100mm
• Color: White
• Condition: Open Sealed

Important Games World Resolution Filter

For your monitor filter:

Resolution: FHD / QHD / 4K

select:

4K

because the native display resolution is:

3840 × 2160 UHD

The monitor can also operate at FHD in Dual Mode, but it is fundamentally a native 4K panel.

Important Games World Refresh Rate Filter

For your available refresh-rate options:

60 / 144 / 165 / 180 / 200 / 240 / 300 / 320 / 500Hz

select:

320Hz

because 320Hz is the monitor's maximum refresh rate in Dual Mode.

However, the detailed specification must clearly state:

4K 160Hz / FHD 320Hz

to avoid implying 320Hz at 4K.

Important Games World Panel Filter

For:

Panel Type: IPS / VA / TN / OLED / QD-OLED

select:

IPS

The more precise full description is:

Rapid IPS Mini-LED

Mini-LED describes the backlight technology, not a separate LCD panel family.

Important Games World Response-Time Filter

For:

Response Time: 1ms / 0.5ms / 0.03ms

select:

0.5ms

The official specification is:

0.5ms GTG Minimum

Important HDR Note

The monitor is certified for:

VESA DisplayHDR 1000

with:

Up to 1000 Nits HDR Peak Brightness

This is a substantially higher HDR class than HDR400 gaming monitors.

Important USB-C Note

The USB-C port provides:

98W Power Delivery

and supports:

DisplayPort Alt Mode

This allows compatible laptops to receive display output and charging through one USB-C cable.

Standard Package Contents

MSI lists the standard accessories as:

• 1× DisplayPort 1.4a Cable
• 1× HDMI 2.1 Cable
• 1× USB Type-B to Type-A Cable
• 1× USB Type-C Cable
• 1× Power Cord
• 1× AC Adapter
• 1× Quick Guide
• 4× VESA Wall Mount Screws

Because this unit is Open Sealed, verify all accessories physically before sale.

Important Note – Open Sealed

Before publishing or sale, verify:

• Exact MPG 274URDFW E16M Model
• White Finish
• Panel Cosmetic Condition
• Dead / Stuck Pixels
• Mini-LED Backlight
• Local Dimming Operation
• 4K 160Hz Mode
• FHD 320Hz Dual Mode
• 0.5ms GTG Mode
• G-SYNC Compatible Operation
• FreeSync Premium
• DisplayHDR 1000
• Both HDMI 2.1 Ports
• DisplayPort 1.4a
• USB-C Video
• 98W USB-C PD
• USB Hub
• KVM
• PIP / PBP
• Headphone Output
• Height Adjustment
• Swivel
• Pivot
• Tilt
• Included Cables
• AC Adapter
• Packaging Condition
• Warranty Details

Best For

• 4K PC Gaming
• Competitive FPS Gaming
• Esports
• AAA Gaming
• PS5
• Xbox Series X|S
• High-End Gaming PCs
• HDR Gaming
• Content Creation
• Video Editing
• Color Work
• USB-C Laptop Setups
• Multi-Device KVM Setups
• Users Who Want Both 4K and 320Hz

Why Choose the MSI MPG 274URDFW E16M?

• Dual Mode provides both 4K 160Hz and FHD 320Hz operation.
• Rapid IPS Mini-LED combines fast response with advanced local dimming.
• 1,152 local dimming zones provide significantly stronger HDR control than standard IPS backlights.
• VESA DisplayHDR 1000 delivers up to 1000-nit HDR highlights.
• 0.5ms GTG minimum response supports fast competitive gameplay.
• G-SYNC Compatible and FreeSync Premium provide broad VRR support.
• Quantum Dot technology provides wide color coverage.
• USB-C with 98W PD is ideal for compatible laptop setups.
• HDMI 2.1 supports modern gaming consoles and 4K 120Hz console gaming.
• KVM provides convenient control of multiple connected systems.
• PIP/PBP provides flexible multi-source viewing.
• Fully adjustable stand provides height, swivel, pivot, and tilt control.
