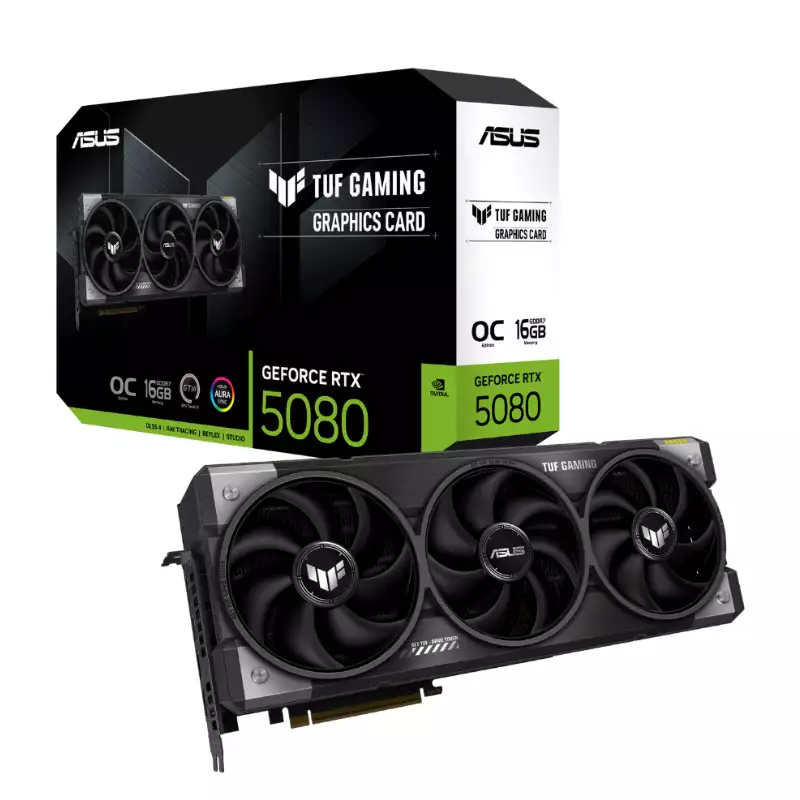

ASUS TUF Gaming GeForce RTX 5080 16GB GDDR7 OC Edition Graphics Card

Description

The ASUS TUF Gaming GeForce RTX 5080 16GB GDDR7 OC Edition is a high-end gaming graphics card based on NVIDIA's GeForce RTX 5080 GPU. It combines 10,752 CUDA cores, 16GB of GDDR7 memory, a 256-bit memory interface, and 30Gbps memory speed with ASUS TUF Gaming's heavy-duty cooling and construction.

The factory-overclocked model runs at up to 2730MHz in OC Mode, while the default boost clock is 2700MHz. It uses the latest PCI Express 5.0 interface and provides five physical display outputs: 3 × DisplayPort 2.1b and 2 × HDMI 2.1b.

Key Features

NVIDIA GeForce RTX 5080

• NVIDIA GeForce RTX 5080 GPU
• Latest-generation RTX architecture
• 10,752 CUDA cores
• Advanced ray-tracing capabilities
• AI-accelerated graphics and workloads
• Designed for high-end 4K gaming
• Suitable for demanding content-creation workloads

16GB GDDR7 Memory

• 16GB GDDR7 video memory
• 30Gbps memory speed
• 256-bit memory interface
• High-bandwidth memory subsystem
• Designed for high-resolution gaming
• Suitable for demanding textures and creative applications

ASUS officially specifies 16GB GDDR7 at 30Gbps over a 256-bit interface for the TUF RTX 5080 OC Edition.

Factory Overclocked Performance

The TUF Gaming OC Edition comes with higher factory clock speeds than the standard TUF RTX 5080.

• Default Mode Boost Clock: 2700MHz
• OC Mode: 2730MHz
• Factory-overclocked configuration
• Additional tuning available through ASUS GPU Tweak III

For comparison, ASUS lists the non-OC TUF RTX 5080 at a 2617MHz default boost clock and 2640MHz OC Mode, making the OC Edition the faster factory configuration.

Display Connectivity

The graphics card provides:

• 3 × DisplayPort 2.1b
• 2 × HDMI 2.1b
• HDCP 2.3 support
• Maximum digital resolution of 7680 × 4320
• Up to 4 simultaneous displays

The five physical outputs provide flexibility for high-resolution gaming monitors, TVs, and multi-monitor workstations.

Specifications

• Brand: ASUS
• Series: TUF Gaming
• Product: GeForce RTX 5080 OC Edition
• Model: TUF-RTX5080-O16G-GAMING
• GPU: NVIDIA GeForce RTX 5080
• CUDA Cores: 10,752
• Video Memory: 16GB GDDR7
• Memory Speed: 30Gbps
• Memory Interface: 256-bit
• Bus Interface: PCI Express 5.0
• Default Boost Clock: 2700MHz
• OC Mode Clock: 2730MHz
• AI Performance: 1801 TOPs
• OpenGL: OpenGL 4.6
• Maximum Digital Resolution: 7680 × 4320
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 2 × HDMI 2.1b
• HDCP: 2.3
• Maximum Simultaneous Displays: 4
• NVLink / CrossFire: No
• Power Connector: 1 × 16-Pin
• Recommended PSU: 850W
• Card Size: 3.6-Slot
• Dimensions: 348 × 146 × 72 mm
• Aura Sync: ARGB
• Software: ASUS GPU Tweak III

Important AI Performance Note

The product title states 1858 TOPs AI Performance, but ASUS's current official specification for model TUF-RTX5080-O16G-GAMING lists 1801 TOPs.

For an accurate product listing, 1801 TOPs is the safer specification to use unless the exact regional unit or revision you have is documented differently.

Advanced Cooling Design

The TUF Gaming RTX 5080 is built around a large cooling solution intended to handle sustained high-performance gaming workloads.

Key design priorities include:

• Large multi-slot cooling system
• Multiple cooling fans
• High-airflow heatsink design
• Efficient GPU heat dissipation
• Designed for sustained gaming loads
• Heavy-duty TUF Gaming construction

The card occupies 3.6 expansion slots, so case clearance should be checked carefully before installation.

PCI Express 5.0

The RTX 5080 uses a PCI Express 5.0 interface.

It is designed for modern high-performance gaming PCs and can be installed in compatible full-size PCIe x16 motherboard slots.

Power Requirements

ASUS recommends an 850W power supply for this graphics card.

• Recommended PSU: 850W
• GPU power connector: 1 × 16-pin
• 1-to-3 adapter cable included
• PSU requirements can vary depending on CPU and overall system configuration

ASUS notes that its 850W recommendation is based on a system configuration with an overclocked GPU and CPU.

Aura Sync ARGB

The TUF Gaming RTX 5080 OC Edition supports ASUS Aura Sync ARGB, allowing compatible lighting to coordinate with other Aura Sync components and peripherals.

This makes it suitable for gaming PCs with synchronized RGB lighting.

Dimensions & Case Compatibility

• Length: 348 mm
• Height: 146 mm
• Thickness: 72 mm
• Slot Requirement: 3.6 Slots

Because this is a particularly large graphics card, users should verify:

• GPU length clearance
• GPU thickness clearance
• Front radiator clearance
• Motherboard slot spacing
• Power-cable clearance

before installation.

What's in the Box

ASUS lists the following accessories:

• ASUS TUF Gaming GeForce RTX 5080 OC Edition Graphics Card
• TUF Graphics Card Holder
• 1-to-3 Adapter Cable
• TUF Velcro Hook & Loop
• TUF Magnet
• TUF Gaming Certificate
• Speed Setup Manual
• Thank You Card

Best For

• High-End PC Gaming
• 4K Gaming
• High-Refresh-Rate Gaming
• Ray-Traced Games
• AI-Enhanced Gaming
• Content Creation
• 3D Rendering
• Video Editing
• Streaming
• Multi-Monitor Gaming Setups
• Premium Custom Gaming PCs

Why Choose the ASUS TUF Gaming RTX 5080 OC Edition?

• 10,752 CUDA cores provide substantial GPU processing performance for demanding games and GPU-accelerated applications.
• 16GB of 30Gbps GDDR7 memory provides a high-performance memory subsystem for modern high-resolution gaming and creative workloads.
• The factory-overclocked configuration reaches 2730MHz in OC Mode, providing higher clocks than the standard TUF RTX 5080.
• PCI Express 5.0 provides compatibility with the latest generation of high-performance PC platforms.
• A generous selection of 3 × DisplayPort 2.1b and 2 × HDMI 2.1b connections provides excellent flexibility for gaming monitors, TVs, and multi-display setups.
• The large 3.6-slot TUF Gaming design is built around substantial cooling for sustained high-performance operation.
• Aura Sync ARGB integration makes it suitable for coordinated ASUS RGB gaming builds.
• The included graphics card holder and power adapter cable provide useful installation accessories for this large, high-end GPU
