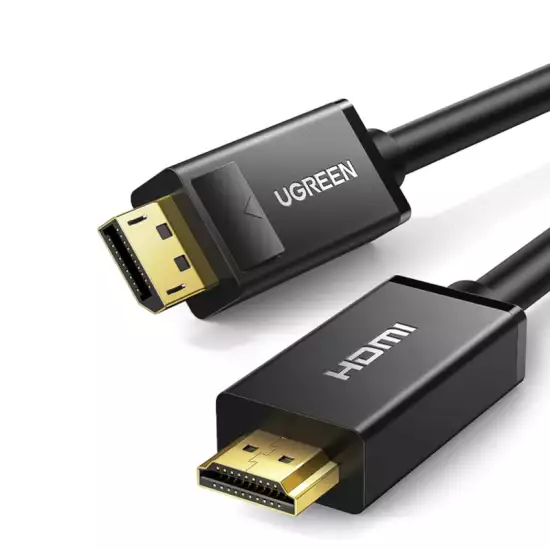

UGREEN 10204 DisplayPort to HDMI Cable 5M – 4K@30Hz, 1080p@120Hz/60Hz, Gold-Plated DP Male to HDMI Male Cable with Audio – Black

Description

The UGREEN 10204 is a 5-meter DisplayPort-to-HDMI cable designed to connect a DisplayPort-equipped computer, laptop, docking station or graphics card to an HDMI-equipped monitor, television or projector.

It transmits high-definition digital video and audio through a single cable, supporting resolutions up to 4K at 30Hz. It also supports 2K at 60Hz and Full HD 1080p at up to 120Hz, subject to the capabilities of the connected equipment.

The cable is unidirectional and operates only from a DisplayPort source to an HDMI display.

Key Features

• DisplayPort male to HDMI male cable
• Unidirectional DisplayPort-to-HDMI connection
• Passive conversion design
• Supports resolutions up to 4K@30Hz
• Supports 2K@60Hz
• Supports 1080p at up to 120Hz
• Supports 1080p@60Hz
• Simultaneous digital audio and video transmission
• Mirror and extended-display modes
• HDMI 1.4-compatible output
• DisplayPort 1.2-compatible input
• Plug-and-play operation
• No separate driver required
• Gold-plated connectors
• Tinned-copper conductors
• Multiple shielding layers
• PVC cable jacket
• DisplayPort connector release button
• Length: 5M / approximately 16.4ft
• Color: Black
• Model/SKU: 10204
• Product series: DP101
• EAN: 6957303812042

4K and Full HD Video

The UGREEN 10204 supports common video resolutions for entertainment, office work and presentations.

*The available resolution and refresh rate depend on the DisplayPort source, graphics hardware, HDMI display and operating-system settings. Some older listings or packaging for this model specify 1080p@60Hz, while current exact-model listings advertise support up to 4K@30Hz and 1080p@120Hz.

Simultaneous Audio and Video

The cable carries digital audio and video through the same connection, eliminating the need for a separate audio cable when the DisplayPort source and HDMI display both support audio.

It is suitable for:

• Movies and television
• Presentations
• Gaming at supported display modes
• Streaming video
• Office applications
• Classroom displays
• Digital signage

Audio output may need to be selected manually in the computer’s sound settings after connecting the HDMI display.

Mirror and Extended-Display Modes

The UGREEN 10204 supports the display modes provided by the connected computer and operating system.

Mirror Mode

Duplicates the computer screen on an HDMI television, monitor or projector. This is useful for:

• Presentations
• Meetings
• Classrooms
• Movie playback
• Photo viewing

Extended Mode

Uses the HDMI display as additional desktop space. This is useful for:

• Multitasking
• Working with multiple applications
• Editing documents
• Viewing reference material
• Office productivity
• Monitoring dashboards

One-Way DisplayPort-to-HDMI Connection

The cable operates in one direction:

DisplayPort source → UGREEN 10204 → HDMI display

Connect the DisplayPort plug to a compatible:

• Desktop computer
• Laptop
• Graphics card
• Docking station
• Workstation

Connect the HDMI plug to a compatible:

• Monitor
• HDTV
• Projector
• Television
• HDMI display

It does not operate in reverse and cannot connect an HDMI source to a DisplayPort monitor.

Passive Conversion Design

The UGREEN 10204 uses a passive DisplayPort-to-HDMI design. The DisplayPort source must therefore support the required HDMI-compatible output conversion, commonly identified as Dual-Mode DisplayPort or DP++.

Many desktop graphics cards support this function, but compatibility should be confirmed when using older computers, docking stations or specialized equipment.

If the source does not support passive DisplayPort-to-HDMI conversion, an active converter is required.

Gold-Plated Connectors

The gold-plated connectors provide corrosion resistance and reliable electrical contact for repeated use.

The DisplayPort connector includes a retaining mechanism and release button to help keep the connection secure. Press the release button before removing the DisplayPort plug.

Stable Signal Construction

The cable uses tinned-copper conductors with multiple shielding layers to help reduce electromagnetic and radio-frequency interference.

Its construction includes:

• Tinned-copper conductors
• Aluminium-foil shielding
• Braided internal shielding
• Durable PVC exterior
• Gold-plated connectors
• Secure DisplayPort retaining mechanism

These features support stable digital audio and video transmission across the 5-meter cable length.

Wide Compatibility

Suitable for compatible DisplayPort-equipped source devices, including:

• Desktop PCs
• Office computers
• Gaming PCs
• Workstations
• Laptops with full-size DisplayPort
• NVIDIA GeForce graphics cards
• AMD Radeon graphics cards
• Professional graphics cards
• Docking stations with DisplayPort output
• DisplayPort hubs with compatible output

Compatible HDMI display devices include:

• HDMI monitors
• HDTVs
• Televisions
• Projectors
• Conference-room displays
• Classroom displays
• Digital-signage screens

Specifications

Installation

1. Confirm that the source device has a full-size DisplayPort output.
2. Confirm that the monitor, TV or projector has an HDMI input.
3. Connect the DisplayPort end to the computer or graphics card.
4. Connect the HDMI end to the display.
5. Select the appropriate HDMI input on the display.
6. Configure the resolution and mirror or extended mode through the operating system.
7. Select the HDMI display as the audio-output device if sound does not switch automatically.

When disconnecting, press the button on the DisplayPort connector before gently removing it.

Important Compatibility Notes

• This is a one-way DisplayPort-to-HDMI cable.
• It does not convert an HDMI source to a DisplayPort display.
• It cannot connect an HDMI-output console to a DisplayPort monitor.
• It is not compatible with USB-C or Mini DisplayPort without another adapter.
• The source should support passive DisplayPort-to-HDMI conversion.
• It does not provide 4K@60Hz, 4K@120Hz or 4K@144Hz.
• Adaptive-sync features such as G-Sync, FreeSync and HDMI VRR are not guaranteed through this passive conversion.
• The cable cannot increase the maximum resolution or refresh rate supported by the source or display.
• HDMI audio output must be supported by the computer’s graphics hardware and drivers.

Best For

• Connecting a PC graphics card to an HDMI monitor
• Connecting a work computer to an HDMI projector
• Connecting a DisplayPort laptop or dock to an HDTV
• Full HD video and audio
• 4K@30Hz movie playback
• 1080p presentations
• Office and productivity setups
• Mirror and extended desktops
• Conference rooms
• Classrooms
• Digital-signage installations

Why Choose the UGREEN 10204?

• Direct DisplayPort-to-HDMI connection without a separate adapter.
• Supports video resolutions up to 4K@30Hz.
• Supports Full HD 1080p at 60Hz and up to 120Hz with compatible equipment.
• Transmits digital audio and video through one cable.
• Supports mirror and extended-display modes.
• Plug-and-play operation without separate drivers.
• Gold-plated connectors resist corrosion.
• Multiple shielding layers help reduce interference.
• Secure DisplayPort connector with release button.
• Extended 5-meter length for offices, classrooms and home-entertainment setups.
• Compatible with DisplayPort graphics cards and HDMI monitors, televisions and projectors.

About this item

• Stable Transmission: UGREEN DisplayPort to HDMI 6FT Cable with Advanced Processor Chip, which can transmit high-definition video and audio from your computer to an HDTV for video streaming or gaming with stunning clarity and authentic audio. Designed for a remarkable user experience with no visual or audio glitches, artifacts, or audio/video synchronization problems. It is not bi-directional: not support HDMI to DP.
• 4K UHD Resolution: Supports 4K@30Hz, 2K@60Hz, 1080P@120Hz without lagging. Easily show movies on a big-screen HDTV and enjoy home theater with 4K high resolution, present work on a projector, or create/configure a second monitor or mirrored displays.
• Audio Video Sync: DP to HDMI cable transmits high-definition video and audio simultaneously from your computer to an HDTV for video streaming or gaming.
