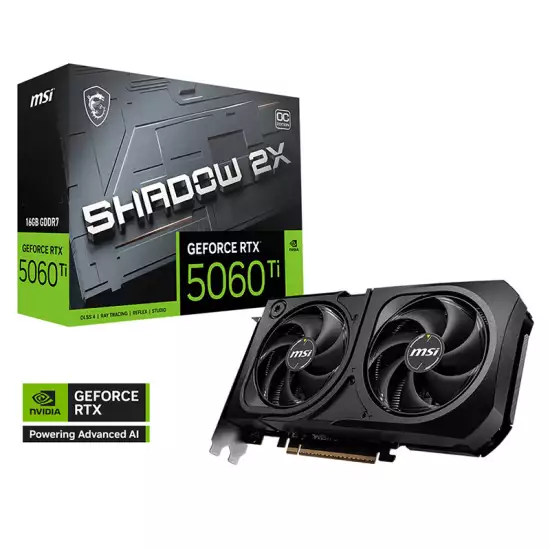

GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS



GeForce RTX 50 Series - Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks: Extreme Performance: 2617 MHz (MSI Center), Boost: 2602 MHz
• STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.





Specifications



Marketing Name	GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS
Model Name	G506T-16S2CP
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5060 Ti
Interface	PCI Express® Gen 5 x16 (uses x8)
Core Clocks	Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz
CUDA® Cores	4608 Units
Memory Speed	28 Gbps
Memory	16 GB GDDR7
Memory Bus	128-bit
Output	DisplayPort x3 (v2.1b), HDMI™ x1 (v2.1b — up to 4K 480Hz / 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Yes
Power Consumption	180 W
Power Connectors	8-pin x1
Recommended PSU	600 W
Card Dimension (mm)	226 × 126 × 41 mm
Weight (Card / Package)	578 g / 851 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® Technology	Yes
Digital Maximum Resolution	7680 × 4320
