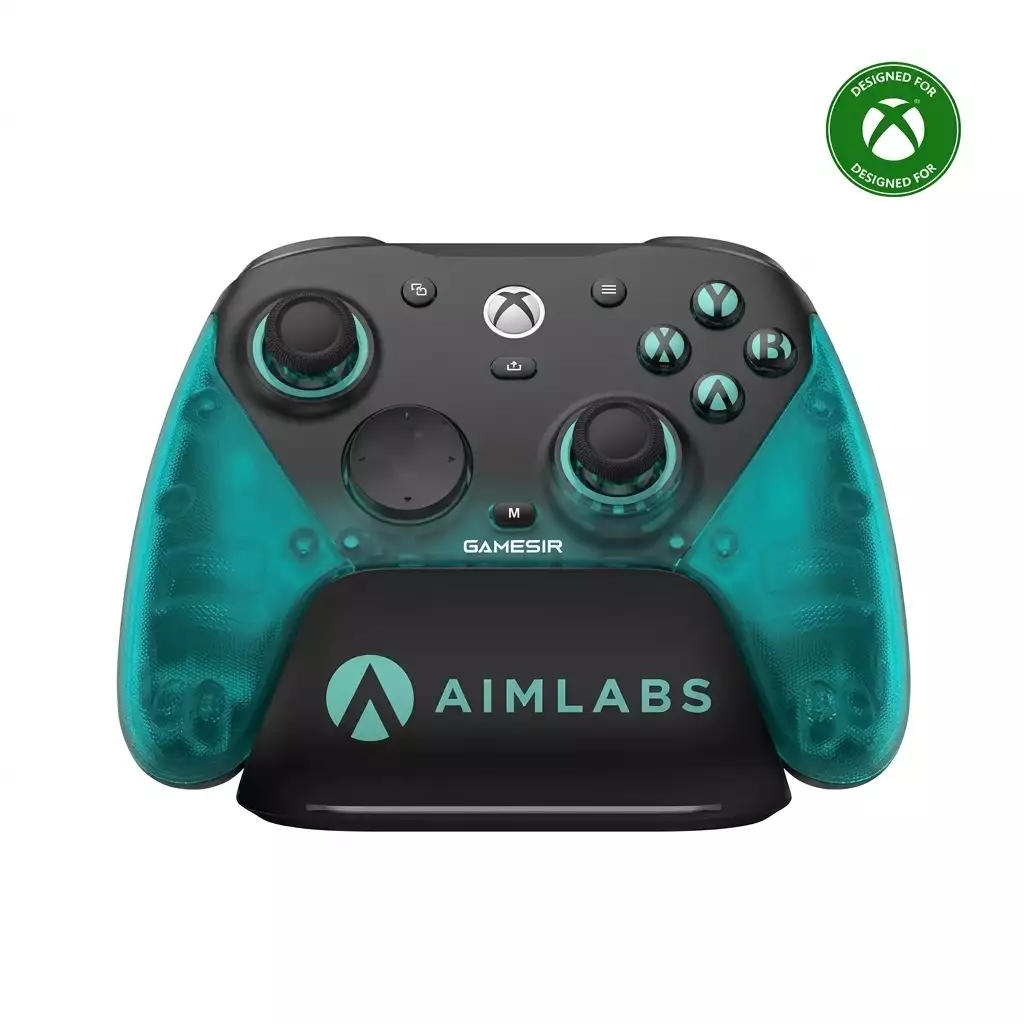

GameSir G7 Pro Aimlabs Edition for Xbox – Tri-Mode Pro Controller

Description

The GameSir G7 Pro Aimlabs Edition for Xbox is a performance-focused professional controller designed for Xbox Series X|S, Xbox One, Windows PC, and Android, combining GameSir's advanced magnetic stick technology with esports-focused buttons, trigger controls, and extensive customization.

This officially licensed Aimlabs Edition features GameSir Mag-Res™ TMR sticks, Hall Effect analog triggers with micro-switch trigger stops, optical micro-switch ABXY buttons, a mechanical micro-switch D-pad, four remappable extra controls, four rumble motors, a 3.5mm headset jack, and a rechargeable 1200mAh battery.

The controller uses a Tri-Mode connection system:

• Xbox: Wired
• PC: 2.4GHz Wireless / Wired
• Android: Bluetooth

It supports a maximum 1000Hz polling rate rather than the 8000Hz polling rate found on the separate G7 Pro 8K PC model.

Brand: GameSir
Model: G7 Pro
Edition: Aimlabs Edition for Xbox
Product Type: Tri-Mode Pro Gaming Controller
Compatibility: Xbox Series X|S / Xbox One / PC / Android
Xbox Connection: Wired
PC Connection: 2.4GHz Wireless / Wired
Android Connection: Bluetooth
Polling Rate: Up to 1000Hz
Sticks: GameSir Mag-Res™ TMR
Triggers: Hall Effect + Micro-Switch Trigger Stops
Battery: 1200mAh
Charging Dock: Included
Software: GameSir Nexus

Key Features

• Aimlabs Officially Licensed Edition
• Xbox Compatible
• Xbox Series X|S Support
• Xbox One Support
• Windows PC Support
• Android Support
• Tri-Mode Connectivity
• Wired Connection for Xbox
• 2.4GHz Wireless + Wired for PC
• Bluetooth for Android
• 1000Hz Polling Rate
• GameSir Mag-Res™ TMR Sticks
• 4096-Level Joystick Resolution
• 12-Bit Industrial-Grade ADC
• Joystick Modules Rated Up to 5 Million Cycles
• Hall Effect Analog Triggers
• Micro-Switch Trigger Stops
• Optical Micro-Switch ABXY Buttons
• Mechanical Micro-Switch D-Pad
• 4 Remappable Extra Controls
• 2 Lockable Rear Buttons
• 2 Mini Bumpers
• Up to 32-Step Macro Support
• 4 Rumble Motors
• 3.5mm Audio Jack
• 1200mAh Rechargeable Battery
• Charging Dock Included
• Three-Part Magnetic Swappable Faceplate
• GameSir Nexus Software
• Aimlabs Special Edition Design

GameSir officially specifies the Xbox Aimlabs version with a 1000Hz polling rate, TMR sticks, Hall Effect triggers, optical ABXY switches, mechanical D-pad and four extra controls.

GameSir Mag-Res™ TMR Sticks

The G7 Pro Aimlabs Edition uses:

GameSir Mag-Res™ TMR Sticks

TMR stands for:

Tunnel Magnetoresistance

The magnetic sensing design provides precise analog control while avoiding the conventional contact-based sensing mechanism used by traditional potentiometer sticks.

Stick Type

TMR / Magnetic

Stick Resolution

4096 Levels

ADC

12-Bit Industrial-Grade

Joystick Durability

Up to 5 Million Cycles

Important TMR Note

For the Games World catalog, use:

Analog Sticks: TMR

Do not write:

Hall Effect Sticks

The controller has:

TMR Sticks + Hall Effect Triggers

These are separate technologies used for different controls.

Hall Effect Triggers

The G7 Pro features:

Hall Effect Analog Triggers

for smooth analog trigger input.

It also provides:

Micro-Switch Trigger Stops

allowing users to switch from progressive analog trigger travel to a shorter, clicky actuation suitable for FPS and other fast-action games.

Trigger Technology

Hall Effect

Trigger Stops

Yes – Micro-Switch

Optical ABXY Buttons

The primary ABXY face buttons use:

Optical Micro-Switches

providing fast, tactile actuation for frequently used gaming controls.

ABXY Type

Optical Micro-Switch

Mechanical D-Pad

The directional pad uses:

Mechanical Micro-Switches

for crisp and tactile directional inputs.

D-Pad

Mechanical Micro-Switch

Four Remappable Extra Controls

The controller includes:

4 Additional Controls

consisting of:

• L4 Rear Button
• R4 Rear Button
• L5 Mini Bumper
• R5 Mini Bumper

The two rear buttons can also be physically locked when they are not needed.

The additional controls support advanced customization and up to 32-step macro recording.

Extra Controls

4

Rear Buttons

2 – Lockable

Mini Bumpers

2

Macro Support

Up to 32 Steps

1000Hz Polling Rate

The Xbox Aimlabs Edition supports:

Up to 1000Hz Polling Rate

over its supported wired and 2.4GHz connections.

Maximum Polling Rate

1000Hz

Important 8K Difference

The G7 Pro Aimlabs Edition for Xbox is NOT the G7 Pro 8K PC Aimlabs Edition.

Xbox Aimlabs Edition

1000Hz

G7 Pro 8K PC Aimlabs Edition

8000Hz

These should be maintained as separate Games World products.

Tri-Mode Connectivity

The Xbox edition uses different connection methods depending on platform:

Xbox Series X|S / Xbox One

Wired

Windows PC

2.4GHz Wireless + Wired

Android

Bluetooth

GameSir describes this configuration as tri-mode connectivity.

Important Xbox Wireless Note

Although the controller contains wireless connectivity:

It is not wireless on Xbox.

For Xbox consoles, GameSir officially specifies:

Wired Connection

The wireless modes are used for:

2.4GHz – PC

and:

Bluetooth – Android.

Four Rumble Motors

Unlike the PC 8K Aimlabs variant, GameSir's Xbox G7 Pro specification lists:

4 Rumble Motors

with:

• 2 Grip Motors
• 2 Trigger Motors

This provides vibration feedback through both the controller grips and triggers.

Vibration

Yes

Rumble Motors

4

3.5mm Headset Jack

The controller includes:

3.5mm Audio Jack

for connecting a compatible wired gaming headset.

Headset Jack

Yes – 3.5mm

1200mAh Rechargeable Battery

The controller contains a:

1200mAh Rechargeable Battery

for its supported wireless PC and Android operation.

Battery

1200mAh

Rechargeable

Yes

Charging Dock Included

GameSir includes a:

Charging Dock

with the G7 Pro Aimlabs Edition.

The controller can be placed on the dock between gaming sessions for convenient charging and storage.

Charging Dock

Yes – Included

Magnetic Swappable Faceplate

The controller features a:

Three-Part Magnetic Swappable Faceplate

and GameSir states that the G7 Pro also supports faceplates from previous G7-series controllers.

Faceplate

Magnetic / Swappable

GameSir Nexus Software

The Xbox-compatible version uses:

GameSir Nexus

for controller customization on PC.

GameSir identifies Nexus as its dedicated PC software for Xbox-licensed GameSir controllers.

Software

GameSir Nexus

Specifications

GameSir's official technical specifications list approximately 272g, dimensions of 152 × 103 × 58mm, a 1200mAh battery, charging dock and the connection modes above.

Quick Product Fields

• Connection: Tri-Mode
• Xbox Connection: Wired
• PC Connection: 2.4GHz Wireless / Wired
• Android Connection: Bluetooth
• Analog Sticks: TMR
• Hall Effect Sticks: No – TMR
• Hall Effect Triggers: Yes
• Polling Rate: 1000Hz
• Extra Buttons: 4 Remappable
• Vibration: Yes – 4 Motors
• Headset Jack: Yes – 3.5mm
• Battery: 1200mAh Rechargeable
• Charging Dock: Included
• Compatible Devices: Xbox Series X|S / Xbox One / PC / Android
• Software: GameSir Nexus
• Edition: Aimlabs Edition

Package Contents

GameSir officially lists:

• 1× GameSir G7 Pro Aimlabs Edition Controller
• 1× Charging Dock
• 1× 2.4GHz Wireless Receiver
• 1× USB Type-C Cable
• 2× D-Pads
• 1× Card
• 1× Sticker
• 1× User Manual
• 1× Xbox Game Pass Card

Best For

• Xbox Series X|S
• Xbox One
• Competitive PC Gaming
• Android Gaming
• FPS Games
• Aimlabs Users
• Racing Games
• Fighting Games
• Esports
• Players Who Prefer TMR Sticks
• Players Concerned About Stick Drift
• Players Who Want Trigger Stops
• Players Who Need Remappable Extra Buttons

Why Choose the GameSir G7 Pro Aimlabs Edition for Xbox?

• Xbox Series X|S and Xbox One compatibility
• GameSir Mag-Res TMR sticks provide magnetic contactless sensing.
• 4096-level joystick resolution and 12-bit ADC provide precise analog input.
• 1000Hz polling rate provides responsive controller input.
• Hall Effect analog triggers provide smooth progressive control.
• Micro-switch trigger stops provide short, clicky actuation for FPS games.
• Optical ABXY buttons deliver fast tactile inputs.
• Mechanical D-pad provides crisp directional feedback.
• Four remappable controls provide additional competitive inputs.
• Four rumble motors provide grip and trigger vibration.
• 3.5mm headset jack supports compatible wired gaming headsets.
• 1200mAh rechargeable battery supports wireless PC and Android use.
• Charging dock is included.
• Magnetic faceplate supports customization.
• GameSir Nexus provides PC-based configuration.
• Exclusive Aimlabs Edition styling distinguishes it from the standard G7 Pro.
