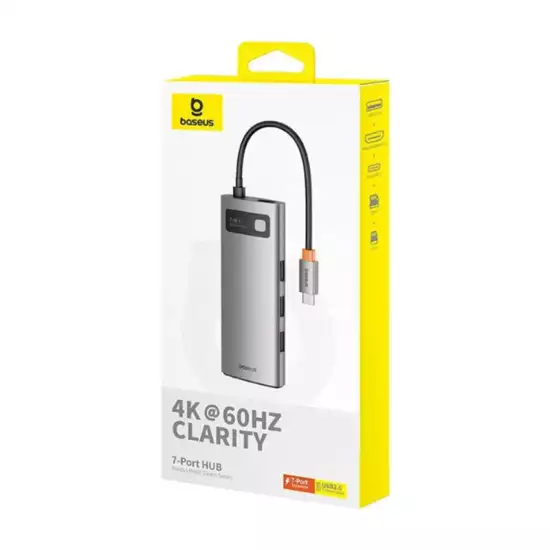

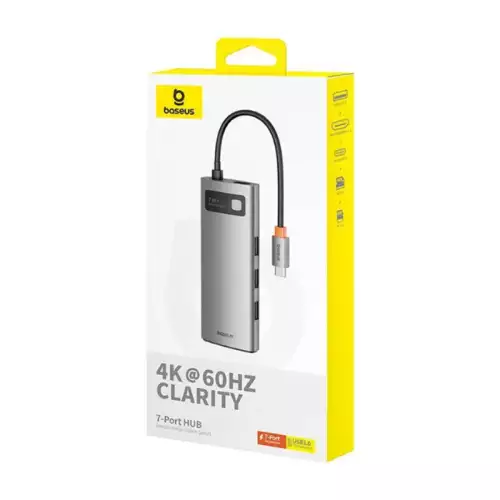

Baseus Metal Gleam Series 7-Port USB-C Hub – 4K@60Hz Clarity – Space Grey

Description

The Baseus 4K@60Hz Clarity 7-Port Hub is a versatile 7-in-1 USB-C hub designed to expand a laptop, tablet, or other compatible USB-C device with additional display, data-transfer, charging, and memory-card connectivity.

The hub combines 4K@60Hz HDMI output, three USB 3.0 ports, 100W USB-C Power Delivery, and SD/TF memory card readers in a compact aluminum-alloy body. Its combination of high-resolution video output and multiple high-speed USB connections makes it suitable for office workstations, creative workflows, presentations, and portable setups.

Key Features

7-in-1 Connectivity

The hub provides seven expansion interfaces:

• 1 × HDMI
• 3 × USB 3.0
• 1 × USB-C Power Delivery
• 1 × SD Card Reader
• 1 × TF / microSD Card Reader

A single USB-C connection therefore provides display output, peripheral connectivity, memory-card access, and pass-through charging.

4K@60Hz HDMI Output

• HDMI display connection
• Resolution up to 3840 × 2160
• Up to 4K at 60Hz
• Supports external monitors, TVs, and projectors
• Suitable for presentations and multimedia
• Supports mirror and extended display configurations

For 4K@60Hz, the connected device's USB-C port needs appropriate DisplayPort Alt Mode capability, including DP 1.4 support for the specified maximum output. With DP 1.2 hosts, output may be limited to 4K@30Hz through the hub.

High-Speed USB 3.0

• 3 × USB 3.0 ports
• Data transfer speeds up to 5Gbps
• Connect multiple USB peripherals simultaneously
• Suitable for external drives and flash drives
• Supports keyboards, mice, controllers, and USB receivers

The USB 3.0 interfaces support theoretical transfer speeds of up to 5Gbps.

100W Power Delivery

• USB-C PD charging port
• Up to 100W input
• Pass-through charging for compatible laptops and devices
• Charge your computer while using the hub
• Suitable for compatible USB-C PD power adapters

The maximum supported Power Delivery input is 100W; actual power delivered to the connected host can be lower because the hub itself requires power to operate.

SD & TF Card Readers

The integrated card readers provide convenient access to photos, videos, documents, and other files stored on memory cards.

• Dedicated SD card slot
• Dedicated TF / microSD card slot
• Transfer speed up to approximately 60MB/s
• Ideal for cameras and other memory-card-based devices
• Convenient for photographers and content creators

Specifications

• Brand: Baseus
• Product Name: Metal Gleam Series 7-Port HUB
• Model: BS-OH146
• Product Type: 7-in-1 USB-C Hub
• Color: Space Grey
• Material: Aluminum Alloy
• Host Connection: USB Type-C
• Total Expansion Ports: 7
• HDMI: 1 × HDMI
• Maximum HDMI Resolution: 4K @ 60Hz
• USB Ports: 3 × USB 3.0
• USB Transfer Speed: Up to 5Gbps
• USB-C PD: Up to 100W
• Card Reader: SD
• microSD Reader: TF
• SD/TF Speed: Up to 60MB/s
• Input: 5V/3A, 9V/3A, 15V/3A, 20V/5A
• Output: 5V/0.9A
• Dimensions: Approximately 115 × 44.5 × 16 mm
• Weight: Approximately 71 g
• Operating Systems: Windows, macOS/Apple OS, Linux & Vista

Compatible Devices

The Baseus 7-Port Hub can be used with compatible USB-C devices that support the functions required, including:

• Laptops
• MacBooks
• Windows notebooks
• USB-C tablets
• Compatible smartphones
• iPad models with USB-C
• Steam Deck and compatible handheld gaming PCs
• USB-C desktop computers

Important: USB-C ports do not all provide the same capabilities. HDMI video output requires the host device's USB-C connection to support DisplayPort Alt Mode.

Connect Multiple Accessories

The three USB 3.0 ports can be used with compatible accessories such as:

• External SSDs
• External hard drives
• USB flash drives
• Keyboards
• Mice
• Game controllers
• USB receivers
• Printers
• Card readers
• Other USB-A peripherals

Aluminum Alloy Construction

• Compact aluminum-alloy enclosure
• Space Grey finish
• Designed for improved heat dissipation
• Lightweight at approximately 71 g
• Portable design for laptop bags and travel
• Suitable for permanent desktop setups or mobile workstations

What's in the Box

• Baseus 7-Port USB-C Hub
• Integrated USB-C Host Cable
• User Manual

Best For

• Laptop Connectivity Expansion
• Office Workstations
• MacBook Users
• External Displays
• 4K Monitors & TVs
• External SSDs & Hard Drives
• Photography & Video Workflows
• Presentations
• Home Offices
• Portable Workstations

Why Choose the Baseus 4K@60Hz Clarity 7-Port Hub?

• The 7-in-1 design combines display, USB, charging, and memory-card connectivity in one compact hub.
• 4K@60Hz HDMI output provides sharp, smooth video on compatible devices and displays.
• Three USB 3.0 ports with speeds up to 5Gbps provide convenient connectivity for storage devices and everyday peripherals.
• 100W USB-C Power Delivery allows a compatible laptop to receive power while the hub and its other connections remain in use.
• Integrated SD and TF/microSD readers make it particularly useful for photographers, videographers, and other content creators.
• The compact aluminum-alloy construction combines portability with effective heat dissipation for everyday workstation use.
