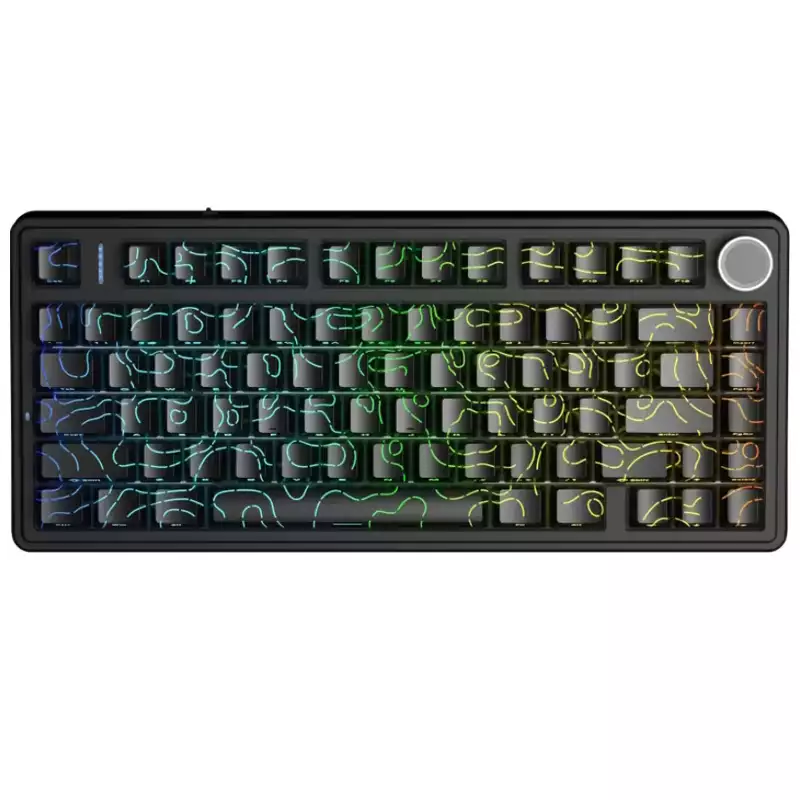

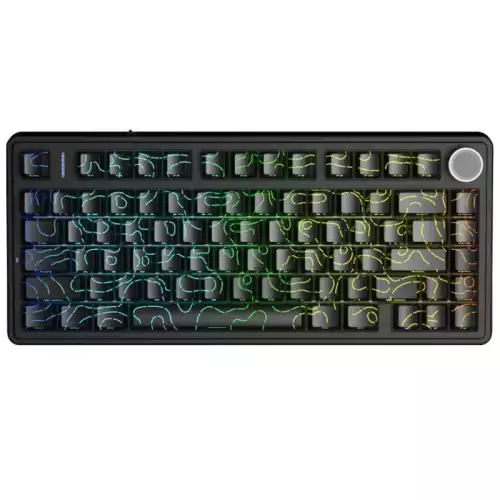

AULA F75HE Hall Effect Magnetic Gaming Keyboard – Line Design Black

Experience ultra-responsive competitive gaming with the AULA F75HE, a 75% Hall Effect magnetic keyboard designed around adjustable actuation, Rapid Trigger technology, high-speed polling, and advanced esports controls.

This Line Design Black edition features distinctive contour-style PBT keycaps paired with Black King linear magnetic switches, providing smooth key travel and highly customizable Hall Effect input.

With 8000Hz wired polling, 160kHz scanning, 0.01mm Rapid Trigger precision, tri-mode USB-C / 2.4GHz / Bluetooth connectivity, magnetic hot-swappable switches, gasket-mounted construction, RGB lighting, and a 4000mAh rechargeable battery, the F75HE is built for both competitive gaming and everyday use.

Key Features

Black King Magnetic Switches
This Line Design Black edition comes equipped with Black King Hall Effect magnetic switches.

Unlike conventional mechanical switches, Hall Effect switches measure the position of the key using magnetic sensing, enabling advanced features such as adjustable actuation and Rapid Trigger.

Black King Switch Specifications

The smooth linear action is especially suitable for FPS movement, rapid repeated inputs, and competitive gaming.

Rapid Trigger – 0.01mm Precision

Rapid Trigger dynamically activates and resets a key based on its physical movement instead of relying on a fixed reset point.

This allows extremely fast repeated inputs for actions such as:

• Counter-strafing
• Rapid direction changes
• Repeated movement inputs
• Fast crouching
• Rhythm-game inputs
• Competitive FPS movement

Rapid Trigger settings can be adjusted with precision down to 0.01mm.

Adjustable Actuation

Hall Effect sensing allows individual keys to use programmable actuation behavior.

You can configure:

• Very short travel for fast movement commands
• Deeper actuation to reduce accidental inputs
• Different settings for individual keys
• Gaming-specific profiles
• More traditional typing behavior when preferred

Customization is handled through AULA HUB.

8000Hz Wired Polling Rate

The F75HE provides an ultra-high maximum polling rate of:

8000Hz via USB-C wired connection

This allows the keyboard to report inputs to the computer significantly more frequently than a conventional 1000Hz keyboard.

160kHz Scan Rate

The Hall Effect sensing system scans key positions at up to:

160,000Hz

The high scan rate works together with 8K polling and Rapid Trigger to provide extremely fast detection of key movement.

Tri-Mode Connectivity

Use the F75HE through three connection methods:

• USB Type-C Wired
• 2.4GHz Wireless
• Bluetooth

This makes it suitable for gaming PCs as well as laptops, tablets, smartphones, and other compatible devices.

Polling Rate by Connection

For maximum competitive performance, USB-C wired mode provides the highest polling rate.

4000mAh Rechargeable Battery

The built-in 4000mAh battery powers the F75HE during 2.4GHz and Bluetooth operation.

Approximate battery runtime depends on:

• RGB brightness
• Lighting effects
• Connection mode
• Usage pattern
• Keyboard configuration

USB-C provides both wired operation and charging.

75% Compact 80-Key Layout

The F75HE uses an 80-key 75% layout, retaining essential controls while taking up significantly less desk space than a full-size keyboard.

It keeps:

• Function-row keys
• Arrow keys
• Essential navigation controls
• Multifunction knob

while eliminating the dedicated number pad to provide extra mouse space.

Line Design Black / Black Contour Keycaps

This edition features AULA’s distinctive Black Contour design.

The dark PBT keycaps use contour-style / side-engraved legends designed to interact with the RGB illumination for a striking line-lit appearance.

The result is a much more distinctive aesthetic than a conventional solid-black gaming keyboard.

PBT Keycaps

Durable PBT construction provides:

• Better resistance to surface shine
• Improved long-term durability
• Textured typing feel
• Greater wear resistance than typical ABS keycaps

The keycaps use a Cherry-style profile.

Magnetic Hot-Swappable Switches

The F75HE supports removable magnetic switches.

This allows compatible Hall Effect switches to be replaced without soldering.

Important: Magnetic hot-swap is different from conventional mechanical hot-swap. Standard MX mechanical switches should not be assumed compatible.

Use compatible magnetic Hall Effect switches designed for the F75HE platform.

Gasket-Mounted Construction

The F75HE uses a gasket-mounted internal structure to reduce the harshness associated with a rigid keyboard assembly.

Benefits include:

• Softer typing feel
• Reduced case vibration
• Improved acoustic character
• More comfortable bottom-out behavior

Five-Layer Sound Dampening

AULA incorporates a five-layer acoustic dampening system inside the keyboard.

The internal layers help reduce:

• Hollow case resonance
• Unwanted vibration
• Harsh switch noise
• Internal echo

This provides a cleaner and more controlled sound profile from the magnetic switches.

Aluminum Plate

An internal aluminum positioning plate provides structural stability while working with the gasket system to maintain a controlled typing feel.

RGB Backlighting

The F75HE features customizable RGB lighting with approximately 16.8 million colors.

Lighting features include:

• Multiple RGB effects
• Approximately 20 onboard lighting modes
• Adjustable brightness
• Adjustable animation speed
• Customizable effects
• Software control through AULA HUB

The Line Design Black keycaps make the lighting especially visible through the contour-style legends.

Multifunction Aluminum Knob

The integrated aluminum-alloy rotary knob provides convenient control for compatible functions such as:

• Volume
• Media
• RGB lighting
• Keyboard mode controls

Advanced Gaming Functions

The F75HE supports a range of advanced Hall Effect gaming features.

SOCD / Snap Tap-Style Input
Allows configurable handling of opposing directional inputs.

DKS – Dynamic Keystroke
Allows different functions to trigger at different stages of the same keypress.

Mod-Tap / Hold-Tap
A key can perform one action when tapped and another when held.

Toggle Functions
Supported inputs can operate as configurable toggles.

Macros
Create programmable command sequences for supported games and applications.

SOCD and similar functions should be used in accordance with the rules of the game, tournament, or competitive platform.

AULA HUB

AULA HUB provides detailed customization of supported functions, including:

• Rapid Trigger
• Actuation distance
• Individual key behavior
• SOCD settings
• Dynamic Keystroke
• Hold-Tap
• Toggle functions
• Key remapping
• Macros
• RGB lighting
• Gaming profiles

Specifications

Dimensions & Weight

The compact footprint provides plenty of mouse space while retaining the keys most users need for gaming and productivity.

Multi-Platform Compatibility

The F75HE supports compatible devices running:

• Windows
• macOS
• Android
• iOS

Software and advanced configuration availability may differ according to operating system and connection mode.

Perfect For

• Competitive FPS gaming
• Counter-Strike 2
• Valorant
• Fortnite
• Apex Legends
• Call of Duty
• Esports players
• Rapid Trigger users
• Hall Effect keyboard enthusiasts
• Wireless gaming setups
• RGB gaming desks
• Users upgrading from conventional mechanical keyboards

Why Choose the AULA F75HE Line Design Black?

• Distinctive Line Design / Black Contour appearance
• Black King linear magnetic switches
• Hall Effect magnetic sensing
• Adjustable actuation
• Rapid Trigger support
• 0.01mm RT adjustment precision
• 8000Hz wired polling
• 1000Hz 2.4GHz wireless polling
• 160kHz scan rate
• SOCD support
• Dynamic Keystroke support
• Mod-Tap / Hold-Tap functionality
• 75% compact layout
• 80-key configuration
• Tri-mode connectivity
• USB-C wired operation
• 2.4GHz wireless
• Bluetooth
• 4000mAh rechargeable battery
• Magnetic hot-swappable switches
• Gasket-mounted construction
• Five-layer sound dampening
• Aluminum positioning plate
• PBT contour keycaps
• Customizable RGB lighting
• Multifunction aluminum knob
• AULA HUB customization

Package Contents

• 1 × AULA F75HE Gaming Keyboard – Line Design Black
• 1 × USB Type-C Cable
• 1 × 2.4GHz Wireless Receiver
• 1 × Keycap / Switch Puller
• Spare Magnetic Switches where included
• 1 × User Manual
