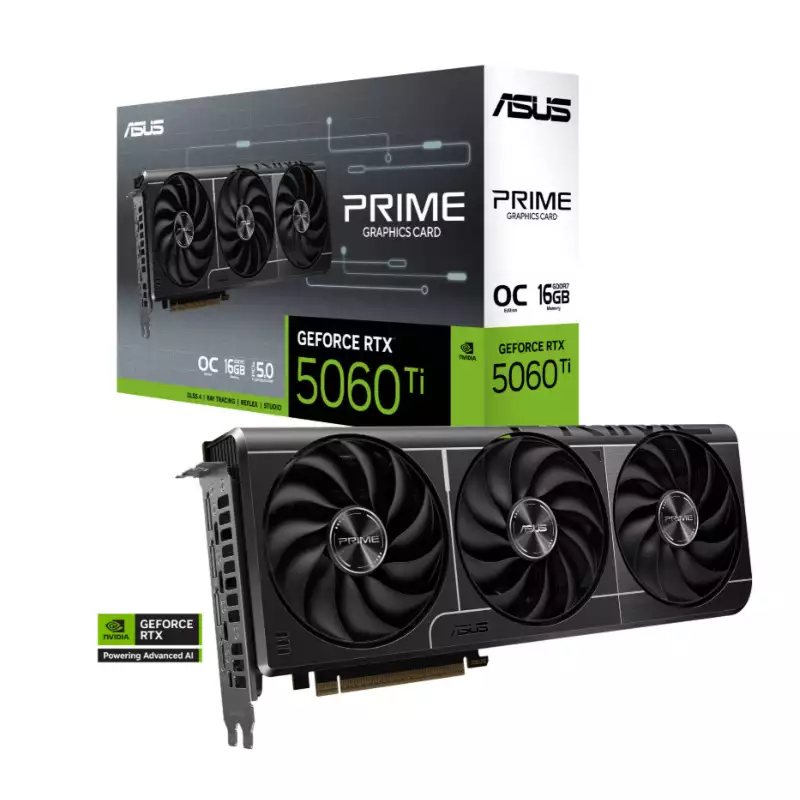

ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card | 90YV0MH2-M0NA00

Description

The ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition is a high-performance graphics card powered by NVIDIA's GeForce RTX 5060 Ti GPU, designed for modern PC gaming, content creation, ray tracing, and AI-accelerated workloads.

This OC Edition combines 16GB of next-generation GDDR7 memory, 4,608 CUDA cores, a 2617 MHz default boost clock, and a 28 Gbps memory speed with a 128-bit memory interface. ASUS also provides an OC mode that increases the GPU clock to 2647 MHz.

Built around the NVIDIA Blackwell generation, the RTX 5060 Ti supports modern NVIDIA technologies including DLSS 4, hardware-accelerated ray tracing, and AI-enhanced graphics capabilities.

Key Features

NVIDIA GeForce RTX 5060 Ti

• NVIDIA GeForce RTX 5060 Ti GPU
• NVIDIA Blackwell architecture
• 4,608 CUDA cores
• 759 TOPS rated AI performance
• Hardware-accelerated ray tracing
• AI-enhanced gaming and creation
• NVIDIA DLSS 4 support

The card's combination of CUDA, ray-tracing, and AI hardware makes it suitable for gaming as well as GPU-accelerated creative applications.

16GB GDDR7 Memory

• 16GB dedicated graphics memory
• Next-generation GDDR7 memory
• 28 Gbps memory speed
• 128-bit memory interface
• Approximately 448 GB/s memory bandwidth
• Suitable for high-resolution textures and demanding creative workloads

The 16GB VRAM capacity is particularly useful for demanding modern games, high-resolution assets, 3D rendering, video production, and AI-assisted applications.

Factory Overclocked Performance

• Default Boost Clock: 2617 MHz
• OC Mode: 2647 MHz
• Factory-overclocked PRIME OC Edition
• Additional tuning available through ASUS GPU Tweak III

The 2617 MHz figure refers to the card's normal boost-clock specification, while ASUS specifies 2647 MHz when OC Mode is enabled.

Triple-Fan Cooling

The ASUS PRIME RTX 5060 Ti OC uses a triple-fan cooling design, providing substantial airflow while maintaining a relatively compact 2.5-slot profile.

Key cooling features include:

• 3 × Axial-tech cooling fans
• 2.5-slot design
• Large heatsink surface area
• Optimized airflow
• Designed for stable sustained gaming performance

The card measures 304 mm long, 120 mm high, and 50 mm thick.

PCI Express 5.0

• PCI Express 5.0 interface
• Compatible with modern PCIe motherboards
• Backward compatibility with suitable previous-generation PCIe slots
• Designed for current-generation gaming PCs and workstations

ASUS officially specifies the card's bus standard as PCI Express 5.0.

Display Connectivity

The ASUS PRIME RTX 5060 Ti provides four modern display outputs:

• 1 × HDMI 2.1b
• 3 × DisplayPort 2.1b
• Maximum of 4 simultaneous displays
• Maximum digital resolution of 7680 × 4320
• HDCP 2.3 support

This makes the card suitable for high-resolution gaming monitors, high-refresh-rate displays, multi-monitor workstations, and compatible 8K displays.

Specifications

• Brand: ASUS
• Series: PRIME
• GPU: NVIDIA GeForce RTX 5060 Ti
• ASUS Model: PRIME-RTX5060TI-O16G
• Part Number: 90YV0MH2-M0NA00
• Edition: OC Edition
• GPU Architecture: NVIDIA Blackwell
• CUDA Cores: 4,608
• AI Performance: 759 TOPS
• Video Memory: 16GB
• Memory Type: GDDR7
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Memory Bandwidth: Approximately 448 GB/s
• Default Boost Clock: 2617 MHz
• OC Mode Clock: 2647 MHz
• Bus Interface: PCI Express 5.0
• OpenGL: 4.6
• Maximum Digital Resolution: 7680 × 4320
• HDMI: 1 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1b
• Maximum Displays: 4
• HDCP: 2.3
• Cooling: Triple-Fan Active Cooling
• Slot Size: 2.5 Slot
• Dimensions: 304 × 120 × 50 mm
• Power Connector: 1 × 8-Pin
• Recommended PSU: 550W
• Color: Black / PRIME Design

NVIDIA DLSS 4

As part of the GeForce RTX 50 Series, the RTX 5060 Ti supports NVIDIA DLSS 4, which uses AI-powered rendering technologies to improve performance and image quality in supported games.

Depending on the game and implementation, RTX 50 Series DLSS technologies can provide:

• AI-enhanced rendering
• Higher frame rates
• Improved image quality
• Ray-traced gaming enhancements
• Frame-generation technologies

This makes the RTX 5060 Ti particularly suitable for modern games that support NVIDIA's latest RTX features.

Gaming & Ray Tracing

The RTX 5060 Ti is designed for modern gaming workloads including:

• 1080p High-Refresh-Rate Gaming
• 1440p Gaming
• Ray-Traced Gaming
• Competitive Esports
• DLSS-Enhanced Gaming
• VR Gaming
• High-Resolution Texture Packs

The 16GB VRAM configuration also provides significantly more graphics-memory capacity than lower-capacity variants, which can be beneficial in memory-intensive games and applications.

Content Creation & AI

Beyond gaming, the RTX 5060 Ti can accelerate compatible workloads such as:

• Video Editing
• 3D Rendering
• Graphic Design
• Streaming
• AI Applications
• GPU-Accelerated Effects
• NVIDIA Studio Applications
• Creative Rendering

ASUS provides compatibility with both NVIDIA Game Ready Drivers and Studio Drivers, allowing the card to be configured around gaming or creative-production priorities.

Power Requirements

• Recommended PSU: 550W
• Graphics Card Power Connector: 1 × 8-Pin PCIe
• Typical listed card power: Approximately 180W

Unlike some higher-end graphics cards, this PRIME RTX 5060 Ti uses a conventional single 8-pin PCIe power connector, which can simplify installation in compatible systems.

Actual system power requirements depend on the processor, motherboard, storage, cooling, overclocking, and other installed components.

Dimensions & Case Compatibility

• Length: 304 mm
• Height: 120 mm
• Thickness: 50 mm
• Expansion Slots: 2.5

Before purchasing, check that your PC case provides sufficient GPU length and thickness clearance, particularly when front-mounted radiators or other expansion cards are installed.

Software Support

Compatible ASUS and NVIDIA software includes:

• ASUS GPU Tweak III
• NVIDIA GeForce Game Ready Driver
• NVIDIA Studio Driver
• ASUS MuseTree

GPU Tweak III can be used for compatible monitoring, performance tuning, and GPU configuration.

What's in the Box

• ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card
• Speedsetup Manual
• ASUS Velcro Hook & Loop
• Thank You Card

Best For

• 1080p High-Refresh Gaming
• 1440p Gaming
• Ray-Traced Gaming
• DLSS 4 Gaming
• Competitive Gaming
• Content Creation
• Video Editing
• 3D Rendering
• Streaming
• AI-Accelerated Applications
• Multi-Monitor Gaming & Productivity

Why Choose the ASUS PRIME RTX 5060 Ti 16GB OC?

The 16GB GDDR7 memory provides generous VRAM capacity for demanding games, high-resolution assets, creative applications, and GPU-intensive workloads, while its 4,608 CUDA cores and 28 Gbps memory provide the underlying performance for modern gaming and creation.

ASUS's factory-overclocked configuration runs at a 2617 MHz default boost clock or up to 2647 MHz in OC Mode, while the triple-fan cooling system is designed to maintain stable operating temperatures during extended workloads.

Modern HDMI 2.1b and DisplayPort 2.1b outputs provide support for current high-resolution and high-refresh-rate displays, with up to four monitors supported simultaneously.

Finally, its 2.5-slot form factor, single 8-pin power connector, and 550W recommended PSU make it comparatively straightforward to integrate into a wide range of compatible gaming PCs without the larger power and physical requirements of flagship graphics cards.
