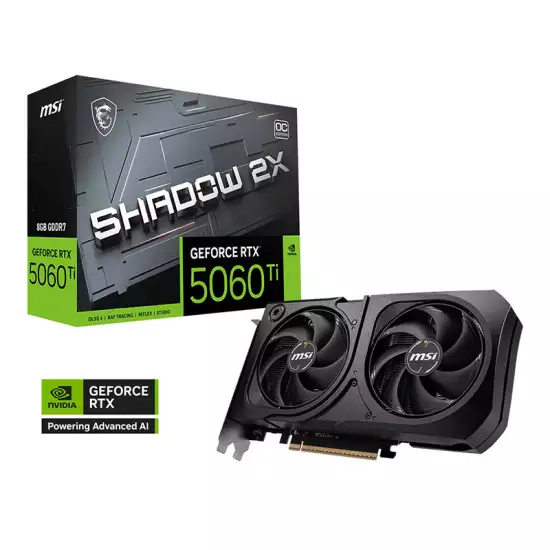

MSI GeForce RTX 5060 Ti 8GB SHADOW 2X OC PLUS Graphics Card | 912-V536-023

Description

The MSI GeForce RTX 5060 Ti 8GB SHADOW 2X OC PLUS is an overclocked NVIDIA GeForce RTX 50 Series graphics card designed for high-performance 1080p and 1440p gaming, content creation, ray tracing, and AI-accelerated workloads.

Powered by NVIDIA's Blackwell architecture, the card features 4,608 CUDA cores, 8GB of high-speed GDDR7 memory, a 128-bit memory interface, and a factory-overclocked boost clock of up to 2602 MHz. It also introduces the latest generation of NVIDIA RT and Tensor cores alongside DLSS 4 technologies.

MSI's compact SHADOW 2X dual-fan cooling system makes the card particularly suitable for gaming PCs where strong performance is required without the size of a large triple-fan graphics card.

Key Features

NVIDIA GeForce RTX 5060 Ti

• NVIDIA Blackwell architecture
• 4,608 CUDA cores
• 8GB GDDR7 video memory
• 128-bit memory interface
• Factory-overclocked GPU
• PCI Express Gen 5 interface
• Latest-generation ray tracing and AI acceleration

Factory Overclocked Performance

• Extreme Performance Clock: Up to 2617 MHz through MSI Center
• Boost Clock: Up to 2602 MHz
• Factory-overclocked SHADOW 2X OC PLUS configuration
• Designed for high-refresh-rate gaming
• Suitable for GPU-accelerated creative applications

8GB GDDR7 Memory

The RTX 5060 Ti SHADOW 2X OC PLUS is equipped with next-generation GDDR7 graphics memory.

• Memory Capacity: 8GB
• Memory Type: GDDR7
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• High-bandwidth memory technology
• Designed for modern gaming and graphics workloads

GDDR7 provides substantially higher per-pin data rates than the GDDR6 memory commonly found on previous-generation mainstream graphics cards.

NVIDIA DLSS 4

The RTX 5060 Ti supports NVIDIA's latest DLSS 4 technology suite in compatible games.

Features can include:

• AI-powered upscaling
• Ray Reconstruction
• Frame Generation
• Multi Frame Generation
• Improved image quality
• Higher frame rates in supported games

Available DLSS features vary by game and software support.

Ray Tracing Performance

The NVIDIA Blackwell architecture incorporates dedicated 4th-generation RT Cores for real-time ray tracing.

Ray tracing can improve:

• Reflections
• Shadows
• Global illumination
• Lighting
• Environmental detail
• Overall visual realism

Performance depends on game settings, resolution, DLSS configuration, and the rest of the PC hardware.

AI Performance

The RTX 5060 Ti uses 5th-generation Tensor Cores for AI-accelerated graphics and computing.

These processors power technologies and workloads including:

• NVIDIA DLSS
• AI-assisted content creation
• Generative AI applications
• NVIDIA Broadcast
• AI image processing
• Compatible productivity and creative software

MSI SHADOW 2X Cooling

The compact SHADOW 2X thermal solution uses two cooling fans to maintain GPU temperatures while keeping the overall card relatively compact.

Cooling Features

• Dual-fan cooling system
• TORX FAN 5.0
• Nickel-plated copper baseplate
• Core Pipes
• Airflow Control
• Reinforced backplate
• Zero Frozr technology

Zero Frozr can stop the fans during sufficiently light workloads, reducing unnecessary fan noise when the GPU does not require active cooling.

TORX FAN 5.0

MSI's TORX FAN 5.0 design is engineered to improve airflow through the heatsink.

• Ring-linked fan blades
• Optimized airflow
• Improved air pressure
• Designed for efficient GPU cooling
• Two-fan configuration

This cooling design helps the SHADOW 2X remain compact while maintaining the thermal performance required by the RTX 5060 Ti.

Specifications

• Brand: MSI
• GPU Manufacturer: NVIDIA
• Product Name: GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS
• Part Number: 912-V536-023
• GPU: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• CUDA Cores: 4,608
• Video Memory: 8GB
• Memory Type: GDDR7
• Memory Interface: 128-bit
• Memory Speed: 28 Gbps
• Boost Clock: Up to 2602 MHz
• Extreme Performance Clock: Up to 2617 MHz via MSI Center
• Interface: PCI Express Gen 5
• PCIe Configuration: PCIe 5.0 x8
• Cooling: Dual Fan
• Fan Technology: TORX FAN 5.0
• Ray Tracing: Supported
• DLSS: DLSS 4
• DirectX: DirectX 12 Ultimate
• OpenGL: OpenGL 4.6
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• HDCP: 2.3

Display Outputs

The MSI RTX 5060 Ti SHADOW 2X OC PLUS provides:

• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b

This provides support for modern:

• High-refresh-rate gaming monitors
• 4K displays
• 8K displays
• Multi-monitor configurations
• HDMI 2.1 televisions

Maximum supported digital resolution is up to 7680 × 4320, subject to display, cable, refresh-rate, and configuration requirements.

Power Requirements

• Graphics Card Power: Approximately 180W
• Recommended PSU: 600W
• Power Connector: 1 × 8-Pin PCIe
• Power Supply Recommendation: Quality 600W or higher PSU

Actual system power requirements depend on the processor, storage devices, cooling system, overclocking, and other installed components.

Compact Dual-Fan Design

The SHADOW 2X OC PLUS is designed to provide RTX 5060 Ti performance in a relatively compact form factor.

• Length: Approximately 226 mm
• Height: Approximately 126 mm
• Thickness: Approximately 41 mm
• Weight: Approximately 600 g
• Dual-slot-oriented design
• Dual-fan cooling

Its shorter design can make it easier to install in compact gaming cases than larger triple-fan graphics cards.

NVIDIA Technologies

The RTX 5060 Ti supports a broad range of NVIDIA gaming and creator technologies, including:

• NVIDIA DLSS 4
• Multi Frame Generation
• Ray Reconstruction
• NVIDIA Reflex 2
• NVIDIA Broadcast
• NVIDIA Studio
• NVIDIA Encoder
• NVIDIA Decoder
• AV1 Encode & Decode
• NVIDIA G-SYNC
• Resizable BAR
• DirectX 12 Ultimate

AV1 & Content Creation

The RTX 5060 Ti is also suitable for streaming and content-creation systems.

Hardware-accelerated media capabilities provide support for:

• AV1 encoding
• AV1 decoding
• Game streaming
• Video recording
• Video editing
• Live broadcasting
• GPU-accelerated creative applications

This makes the card useful beyond gaming for creators working with supported editing, rendering, and streaming software.

Best For

• 1080p Ultra Gaming
• 1440p Gaming
• High-Refresh-Rate Gaming
• Ray-Traced Games
• DLSS 4 Gaming
• Esports
• Streaming
• Video Editing
• Content Creation
• AI-Accelerated Applications
• Compact Gaming PCs

Why Choose the MSI RTX 5060 Ti SHADOW 2X OC PLUS?

• 4,608 CUDA cores and NVIDIA Blackwell architecture provide strong performance for modern gaming and GPU-accelerated applications.
• 8GB of 28 Gbps GDDR7 memory delivers next-generation memory technology for gaming and graphics workloads.
• The factory-overclocked GPU reaches a 2602 MHz boost clock, with up to 2617 MHz Extreme Performance mode available through MSI Center.
• DLSS 4 with Multi Frame Generation can substantially increase frame rates in compatible games.
• 4th-generation RT Cores and 5th-generation Tensor Cores provide dedicated hardware for ray tracing and AI workloads.
• The compact SHADOW 2X dual-fan cooler makes the card easier to fit into smaller gaming systems than many triple-fan alternatives.
• DisplayPort 2.1b and HDMI 2.1b provide modern display connectivity for high-resolution and high-refresh-rate monitors.
• A conventional 8-pin PCIe power connector simplifies compatibility with many existing quality power supplies.
• Hardware AV1 encoding and decoding makes it a capable option for gaming, streaming, recording, and content creation.
• For gamers targeting 1080p or 1440p, the RTX 5060 Ti combines modern NVIDIA features, GDDR7 memory, ray tracing, and AI-enhanced gaming in a relatively compact graphics card.
